遠心鏡頭,遠心同軸光鏡頭
遠心按頭部外徑分為50mm,32mm,26mm,22mm,20mm,18mm,16mm,
32mm以下的大部份遠心鏡頭可以同時提供同軸光與非同軸規格。 |
遠心鏡頭50 |
遠心鏡頭32 |
遠心鏡頭26 |
遠心鏡頭20 |
遠心鏡頭18/16 |
|
|
|
|
|
|

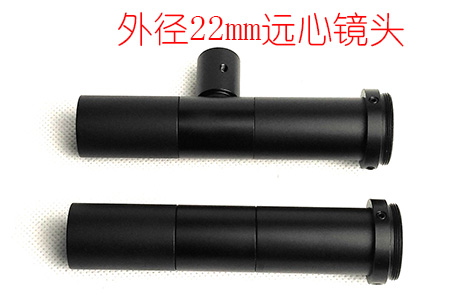

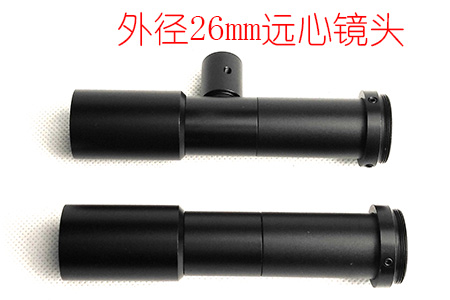

遠心鏡頭,外徑26/22,視場最大16,適用相機1/4'至2/3'
1.采用物方遠心設計,C標準接口,適用相機芯片尺寸:1',2/3',1/1.8',1/2',1/3',1/4',1/6',最大支持芯片尺寸祥見下表;
2.鏡頭頭部外徑16,18,20安裝外徑為16或18;頭部外徑22,26,32mm,50mm安裝外徑為22mm;
3.同軸光照明,附送遠心專用LED同軸照明燈源(不含3V50A電源),有內部8mm,10mm,14mm的光源接口,或8mm光纖轉接口;
4.可以按用戶要求定制其它倍率及工作距的鏡頭。
產品列表說明:
產品按放大率從小到大排列,相同放大率按工作距從小到大排列。

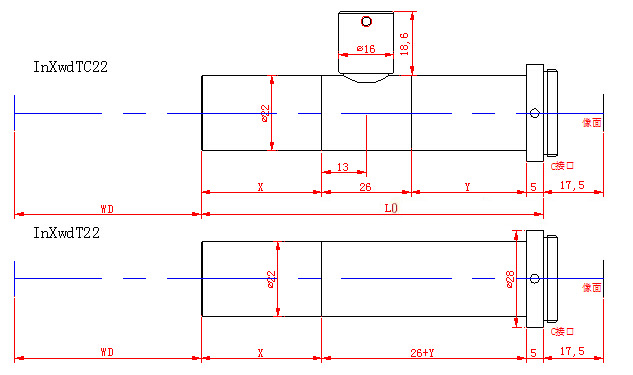

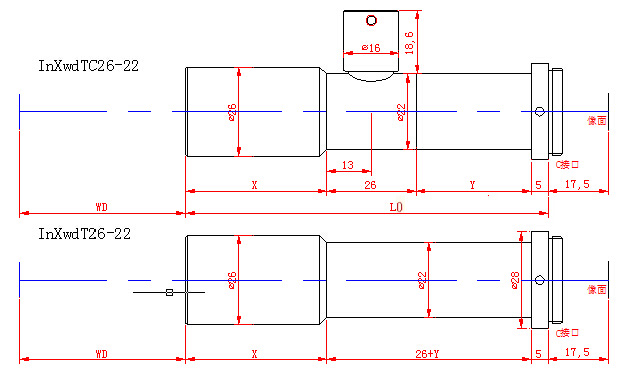

外形圖在最后一列,圖中WD表示工作距。型號中I表示I型C接口,J表示型C接口,接著是放大率,X后面是工作距,
T表示遠心,C表示同軸照明,型號中不帶C的表示沒有相同的同軸光型號,帶C的一般有等同的非同軸光型號
最后面加數字表示頭部外徑或安裝外徑。最右邊是圖紙鏈接。
|
|
型號 |
倍數 |
工作距 |
景深 |
數值孔徑 |
分辨率 |
孔徑F# |
畸變% |
遠心度 |
鏡身L0 |
L1 |
L2 |
d1 |
d2 |
接口 |
最大接收器 |
外形圖下載 |
I0.3X68TC26 |
0.30 |
68 |
5.33 |
0.025 |
0.013 |
6.0 |
0.04 |
1' |
81.2 |
41.0 |
9.2 |
26 |
22 |
C |
1/4' |
I0.3X68T26 |
I0.39X135TC26 |
0.39 |
135 |
6.11 |
0.017 |
0.020 |
11.3 |
0.04 |
1' |
83.3 |
41.0 |
11.3 |
26 |
22 |
C |
1/3' |
I0.39X135T26 |
I0.39X135TC26 |
0.39 |
135 |
4.16 |
0.025 |
0.013 |
7.7 |
0.04 |
1' |
83.3 |
41.0 |
11.3 |
26 |
22 |
C |
1/3' |
I0.39X135T26 |
I0.4X120TC26 |
0.40 |
120 |
5.88 |
0.017 |
0.020 |
11.8 |
0.01 |
1' |
83.3 |
41.0 |
11.3 |
26 |
22 |
C |
1/2.5' |
I0.4X120T26 |
I0.4X120TC26 |
0.40 |
120 |
4.00 |
0.025 |
0.013 |
8.0 |
0.01 |
1' |
83.3 |
41.0 |
11.3 |
26 |
22 |
C |
1/2.5' |
I0.4X120T26 |
I0.4X120TC26 |
0.40 |
120 |
3.03 |
0.033 |
0.010 |
6.1 |
0.01 |
1' |
83.3 |
41.0 |
11.3 |
26 |
22 |
C |
1/3' |
I0.4X120T26 |
I0.4X120TC26 |
0.40 |
120 |
2.44 |
0.041 |
0.008 |
4.9 |
0.01 |
1' |
83.3 |
41.0 |
11.3 |
26 |
22 |
C |
1/4' |
I0.4X120T26 |
I0.5X180TC26 |
0.49 |
180 |
4.80 |
0.017 |
0.020 |
14.4 |
0.38 |
1' |
81.5 |
41.0 |
9.5 |
26 |
22 |
C |
1/2' |
I0.5X180T26 |
I0.5X180TC26 |
0.49 |
180 |
3.27 |
0.025 |
0.013 |
9.8 |
0.35 |
1' |
81.5 |
41.0 |
9.5 |
26 |
22 |
C |
1/2.5' |
I0.5X180T26 |
I0.5X180TC26 |
0.49 |
180 |
2.47 |
0.033 |
0.010 |
7.4 |
0.35 |
1' |
81.5 |
41.0 |
9.5 |
26 |
22 |
C |
1/3' |
I0.5X180T26 |
I0.5X180TC26 |
0.49 |
180 |
1.99 |
0.041 |
0.008 |
6.0 |
0.35 |
1' |
81.5 |
41.0 |
9.5 |
26 |
22 |
C |
1/3' |
I0.5X180T26 |
I0.5X110TC26 |
0.50 |
110 |
4.71 |
0.017 |
0.020 |
14.7 |
0.01 |
1' |
100.5 |
41.0 |
28.5 |
26 |
22 |
C |
1/2' |
I0.5X110T26 |
I0.5X110TC26 |
0.50 |
110 |
3.20 |
0.025 |
0.013 |
10.0 |
0.01 |
1' |
100.5 |
41.0 |
28.5 |
26 |
22 |
C |
1/2' |
I0.5X110T26 |
I0.5X110TC26 |
0.50 |
110 |
2.42 |
0.033 |
0.010 |
7.6 |
0.01 |
1' |
100.5 |
41.0 |
28.5 |
26 |
22 |
C |
1/2' |
I0.5X110T26 |
I0.5X110TC26 |
0.50 |
110 |
1.95 |
0.041 |
0.008 |
6.1 |
0.01 |
1' |
100.5 |
41.0 |
28.5 |
26 |
22 |
C |
1/2' |
I0.5X110T26 |
I0.5X145TC26 |
0.50 |
145 |
5.00 |
0.016 |
0.021 |
15.6 |
0.10 |
1' |
89.2 |
41.0 |
17.2 |
26 |
22 |
C |
1/2' |
I0.5X145T26 |
I0.5X145TC26 |
0.50 |
145 |
3.20 |
0.025 |
0.013 |
10.0 |
0.10 |
1' |
89.2 |
41.0 |
17.2 |
26 |
22 |
C |
1/2' |
I0.5X145T26 |
I0.5X145TC26 |
0.50 |
145 |
2.42 |
0.033 |
0.010 |
7.6 |
0.10 |
1' |
89.2 |
41.0 |
17.2 |
26 |
22 |
C |
1/2' |
I0.5X145T26 |
I0.5X145TC26 |
0.50 |
145 |
1.95 |
0.041 |
0.008 |
6.1 |
0.10 |
1' |
89.2 |
41.0 |
17.2 |
26 |
22 |
C |
1/2' |
I0.5X145T26 |
I0.52X170TC26 |
0.52 |
170 |
4.52 |
0.017 |
0.020 |
15.3 |
0.38 |
1' |
83.3 |
41.0 |
11.3 |
26 |
22 |
C |
1/2' |
I0.52X170T26 |
I0.52X170TC26 |
0.52 |
170 |
3.08 |
0.025 |
0.013 |
10.4 |
0.38 |
1' |
83.3 |
41.0 |
11.3 |
26 |
22 |
C |
1/2.5' |
I0.52X170T26 |
I0.52X170TC26 |
0.52 |
170 |
2.33 |
0.033 |
0.010 |
7.9 |
0.38 |
1' |
83.3 |
41.0 |
11.3 |
26 |
22 |
C |
1/3' |
I0.52X170T26 |
I0.52X170TC26 |
0.52 |
170 |
1.88 |
0.041 |
0.008 |
6.3 |
0.38 |
1' |
83.3 |
41.0 |
11.3 |
26 |
22 |
C |
1/3' |
I0.52X170T26 |
I0.6X110TC26 |
0.60 |
110 |
1.63 |
0.041 |
0.008 |
7.3 |
0.15 |
1' |
99.0 |
41.0 |
27.0 |
26 |
22 |
C |
1/2' |
I0.6X110T26 |
I0.6X45TC26 |
0.60 |
45 |
2.78 |
0.024 |
0.014 |
12.5 |
0.21 |
1' |
109.5 |
41.0 |
37.5 |
26 |
22 |
C |
1/1.8' |
I0.6X45T26 |
I0.6X65TC26 |
0.60 |
65 |
4.17 |
0.016 |
0.021 |
18.8 |
0.27 |
1' |
109.5 |
41.0 |
37.5 |
26 |
22 |
C |
1/1.8' |
I0.6X65T26 |
I0.6X65TC26 |
0.60 |
65 |
2.67 |
0.025 |
0.013 |
12.0 |
0.23 |
1' |
109.5 |
41.0 |
37.5 |
26 |
22 |
C |
1/2' |
I0.6X65T26 |
I0.6X65TC26 |
0.60 |
65 |
2.02 |
0.033 |
0.010 |
9.1 |
0.23 |
1' |
109.5 |
41.0 |
37.5 |
26 |
22 |
C |
1/2' |
I0.6X65T26 |
I0.7X110TC26 |
0.70 |
110 |
1.39 |
0.041 |
0.008 |
8.5 |
0.23 |
1' |
108.0 |
41.0 |
36.0 |
26 |
22 |
C |
1/2' |
I0.7X110T26 |
I0.7X145TC26 |
0.70 |
145 |
3.36 |
0.017 |
0.020 |
20.6 |
0.42 |
1' |
93.0 |
41.0 |
21.0 |
26 |
22 |
C |
1/1.8 |
I0.7X145T26 |
I0.7X145TC26 |
0.70 |
145 |
2.29 |
0.025 |
0.013 |
14.0 |
0.42 |
1' |
93.0 |
41.0 |
21.0 |
26 |
22 |
C |
1/1.8 |
I0.7X145T26 |
I0.7X145TC26 |
0.70 |
145 |
1.73 |
0.033 |
0.010 |
10.6 |
0.42 |
1' |
93.0 |
41.0 |
21.0 |
26 |
22 |
C |
1/2' |
I0.7X145T26 |
I0.7X145TC26 |
0.70 |
145 |
1.39 |
0.041 |
0.008 |
8.5 |
0.42 |
1' |
93.0 |
41.0 |
21.0 |
26 |
22 |
C |
1/2' |
I0.7X145T26 |
I0.7X145TC26 |
0.70 |
145 |
1.17 |
0.049 |
0.007 |
7.1 |
0.42 |
1' |
93.0 |
41.0 |
21.0 |
26 |
22 |
C |
1/2' |
I0.7X145T26 |
型號 |
倍數 |
工作距 |
景深 |
數值孔徑 |
分辨率 |
孔徑F# |
畸變% |
遠心度 |
鏡身L0 |
L1 |
L2 |
d1 |
d2 |
接口 |
最大接收器 |
外形圖下載 |
I0.7X290TC26 |
0.70 |
290 |
3.57 |
0.016 |
0.021 |
21.9 |
0.90 |
1' |
123.0 |
41.0 |
51.0 |
26 |
22 |
C |
1/1.8' |
I0.7X290T26 |
I0.7X68TC26 |
0.70 |
68 |
1.39 |
0.041 |
0.008 |
8.5 |
0.13 |
1' |
114.5 |
41.0 |
42.5 |
26 |
22 |
C |
1/2' |
I0.7X68T26 |
I0.7X80TC26 |
0.70 |
80 |
1.73 |
0.033 |
0.010 |
10.6 |
0.30 |
1' |
93.0 |
41.0 |
21.0 |
26 |
22 |
C |
2/3' |
I0.7X80T26 |
I0.8X110TC26 |
0.80 |
108 |
2.94 |
0.017 |
0.020 |
23.5 |
0.20 |
1' |
114.5 |
41.0 |
42.5 |
26 |
22 |
C |
2/3' |
I0.8X110T26 |
I0.8X110TC26 |
0.80 |
108 |
2.00 |
0.025 |
0.013 |
16.0 |
0.20 |
1' |
114.5 |
41.0 |
42.5 |
26 |
22 |
C |
2/3' |
I0.8X110T26 |
I0.8X110TC26 |
0.80 |
108 |
1.52 |
0.033 |
0.010 |
12.1 |
0.20 |
1' |
114.5 |
41.0 |
42.5 |
26 |
22 |
C |
2/3' |
I0.8X110T26 |
I0.8X110TC26 |
0.80 |
108 |
1.22 |
0.041 |
0.008 |
9.8 |
0.20 |
1' |
114.5 |
41.0 |
42.5 |
26 |
22 |
C |
2/3' |
I0.8X110T26 |
I0.8X130TC26 |
0.80 |
130 |
1.52 |
0.033 |
0.010 |
12.1 |
0.47 |
1' |
99.5 |
41.0 |
27.5 |
26 |
22 |
C |
2/3' |
I0.8X130T26 |
I0.8X45TC26 |
0.80 |
45 |
1.52 |
0.033 |
0.010 |
12.1 |
0.43 |
1' |
100.5 |
41.0 |
28.5 |
26 |
22 |
C |
1/1.8' |
I0.8X45T26 |
I0.8X65TC26 |
0.80 |
65 |
2.08 |
0.024 |
0.014 |
16.7 |
0.20 |
1' |
100.5 |
41.0 |
28.5 |
26 |
22 |
C |
2/3' |
I0.8X65T26 |
I0.8X65TC26 |
0.80 |
65 |
1.52 |
0.033 |
0.010 |
12.1 |
0.20 |
1' |
100.5 |
41.0 |
28.5 |
26 |
22 |
C |
2/3' |
I0.8X65T26 |
I0.8X65TC26 |
0.80 |
65 |
1.22 |
0.041 |
0.008 |
9.8 |
0.20 |
1' |
100.5 |
41.0 |
28.5 |
26 |
22 |
C |
1/1.8' |
I0.8X65T26 |
I0.8X68TC26 |
0.80 |
68 |
2.94 |
0.017 |
0.020 |
23.5 |
0.06 |
1' |
114.5 |
41.0 |
42.5 |
26 |
22 |
C |
2/3' |
I0.8X68T26 |
I0.8X68TC26 |
0.80 |
68 |
2.08 |
0.024 |
0.014 |
16.7 |
0.06 |
1' |
114.5 |
41.0 |
42.5 |
26 |
22 |
C |
2/3' |
I0.8X68T26 |
I0.8X68TC26 |
0.80 |
68 |
1.52 |
0.033 |
0.010 |
12.1 |
0.06 |
1' |
114.5 |
41.0 |
42.5 |
26 |
22 |
C |
2/3' |
I0.8X68T26 |
I0.8X68TC26 |
0.80 |
68 |
1.22 |
0.041 |
0.008 |
9.8 |
0.06 |
1' |
114.5 |
41.0 |
42.5 |
26 |
22 |
C |
2/3' |
I0.8X68T26 |
I0.8X75TC26 |
0.80 |
75 |
2.94 |
0.017 |
0.020 |
23.5 |
0.20 |
1' |
117.5 |
41.0 |
45.5 |
26 |
22 |
C |
2/3' |
I0.8X75T26 |
I0.8X75TC26 |
0.80 |
75 |
2.08 |
0.024 |
0.014 |
16.7 |
0.20 |
1' |
117.5 |
41.0 |
45.5 |
26 |
22 |
C |
2/3' |
I0.8X75T26 |
I0.8X75TC26 |
0.80 |
75 |
1.52 |
0.033 |
0.010 |
12.1 |
0.20 |
1' |
117.5 |
41.0 |
45.5 |
26 |
22 |
C |
1/1.8' |
I0.8X75T26 |
I0.8X75TC26 |
0.80 |
75 |
1.22 |
0.041 |
0.008 |
9.8 |
0.20 |
1' |
117.5 |
41.0 |
45.5 |
26 |
22 |
C |
1/2' |
I0.8X75T26 |
I0.8X76TC26 |
0.80 |
76 |
2.94 |
0.017 |
0.020 |
23.5 |
0.20 |
1' |
100.5 |
41.0 |
28.5 |
26 |
22 |
C |
2/3' |
I0.8X76T26 |
I0.8X76TC26 |
0.80 |
76 |
2.08 |
0.024 |
0.014 |
16.7 |
0.20 |
1' |
100.5 |
41.0 |
28.5 |
26 |
22 |
C |
2/3' |
I0.8X76T26 |
I0.8X76TC26 |
0.80 |
76 |
1.52 |
0.033 |
0.010 |
12.1 |
0.20 |
1' |
100.5 |
41.0 |
28.5 |
26 |
22 |
C |
1/1.8' |
I0.8X76T26 |
I0.8X76TC26 |
0.80 |
76 |
1.22 |
0.041 |
0.008 |
9.8 |
0.20 |
1' |
100.5 |
41.0 |
28.5 |
26 |
22 |
C |
1/2' |
I0.8X76T26 |
I0.8X80TC26 |
0.80 |
80 |
1.22 |
0.041 |
0.008 |
9.8 |
0.80 |
1' |
97.0 |
41.0 |
25.0 |
26 |
22 |
C |
2/3' |
I0.8X80T26 |
I1X100TC26 |
1.00 |
101 |
1.21 |
0.033 |
0.010 |
15.2 |
0.34 |
1' |
109.5 |
41.0 |
37.5 |
26 |
22 |
C |
2/3' |
I1X100T26 |
I1X105TC22 |
1.00 |
105 |
0.89 |
0.045 |
0.007 |
11.1 |
0.23 |
1' |
99.5 |
35.0 |
33.5 |
22 |
22 |
C |
1/2' |
I1X105T22 |
I1X115TC26 |
1.00 |
115 |
2.35 |
0.017 |
0.020 |
29.4 |
0.12 |
1' |
114.5 |
41.0 |
42.5 |
26 |
22 |
C |
2/3' |
I1X115T26 |
I1X115TC26 |
1.00 |
115 |
1.60 |
0.025 |
0.013 |
20.0 |
0.12 |
1' |
114.5 |
41.0 |
42.5 |
26 |
22 |
C |
2/3' |
I1X115T26 |
I1X115TC26 |
1.00 |
115 |
1.21 |
0.033 |
0.010 |
15.2 |
0.12 |
1' |
114.5 |
41.0 |
42.5 |
26 |
22 |
C |
2/3' |
I1X115T26 |
I1X115TC26 |
1.00 |
115 |
0.98 |
0.041 |
0.008 |
12.2 |
0.12 |
1' |
114.5 |
41.0 |
42.5 |
26 |
22 |
C |
2/3' |
I1X115T26 |
I1X115TC26 |
1.00 |
115 |
0.82 |
0.049 |
0.007 |
10.2 |
0.12 |
1' |
114.5 |
41.0 |
42.5 |
26 |
22 |
C |
2/3' |
I1X115T26 |
I1X150TC26 |
1.00 |
150 |
2.50 |
0.016 |
0.021 |
31.3 |
0.60 |
1' |
97.0 |
41.0 |
25.0 |
26 |
22 |
C |
1/2' |
I1X150T26 |
I1X150TC26 |
1.00 |
150 |
0.98 |
0.041 |
0.008 |
12.2 |
0.60 |
1' |
97.0 |
41.0 |
25.0 |
26 |
22 |
C |
1/2' |
I1X150T26 |
I1X180TC26 |
1.00 |
180 |
0.98 |
0.041 |
0.008 |
12.2 |
0.40 |
1' |
109.5 |
41.0 |
37.5 |
26 |
22 |
C |
1/2' |
I1X180T26 |
型號 |
倍數 |
工作距 |
景深 |
數值孔徑 |
分辨率 |
孔徑F# |
畸變% |
遠心度 |
鏡身L0 |
L1 |
L2 |
d1 |
d2 |
接口 |
最大接收器 |
外形圖下載 |
I1X210TC26 |
1.00 |
210 |
0.98 |
0.041 |
0.008 |
12.2 |
0.80 |
1' |
99.5 |
41.0 |
27.5 |
26 |
22 |
C |
1/2' |
I1X210T26 |
I1X260TC26 |
1.00 |
260 |
1.67 |
0.024 |
0.014 |
20.8 |
0.90 |
1' |
131.5 |
41.0 |
59.5 |
26 |
22 |
C |
2/3' |
I1X260T26 |
I1X40TC26 |
1.00 |
40 |
1.21 |
0.033 |
0.010 |
15.2 |
0.36 |
1' |
105.5 |
41.0 |
33.5 |
26 |
22 |
C |
1/2' |
I1X40T26 |
I1X68TC26 |
1.00 |
68 |
0.98 |
0.041 |
0.008 |
12.2 |
0.40 |
1' |
114.5 |
41.0 |
42.5 |
26 |
22 |
C |
1/1.8 |
I1X68T26 |
I1X68TC26 |
1.00 |
68 |
0.98 |
0.041 |
0.008 |
12.2 |
0.50 |
1' |
114.5 |
41.0 |
42.5 |
26 |
22 |
C |
2/3' |
I1X68T26 |
I1X95TC22 |
1.00 |
95 |
1.48 |
0.027 |
0.012 |
18.5 |
0.32 |
1' |
108.5 |
35.0 |
42.5 |
22 |
22 |
C |
1/2' |
I1X95T22 |
I1.1X110TC26 |
1.10 |
110 |
2.14 |
0.017 |
0.020 |
32.4 |
0.90 |
1' |
119.0 |
41.0 |
47.0 |
26 |
22 |
C |
2/3' |
I1.1X110T26 |
I1.1X110TC26 |
1.10 |
110 |
1.45 |
0.025 |
0.013 |
22.0 |
0.90 |
1' |
119.0 |
41.0 |
47.0 |
26 |
22 |
C |
2/3' |
I1.1X110T26 |
I1.1X110TC26 |
1.10 |
110 |
1.10 |
0.033 |
0.010 |
16.7 |
0.90 |
1' |
119.0 |
41.0 |
47.0 |
26 |
22 |
C |
2/3' |
I1.1X110T26 |
I1.1X110TC26 |
1.10 |
110 |
0.89 |
0.041 |
0.008 |
13.4 |
0.60 |
1' |
119.0 |
41.0 |
47.0 |
26 |
22 |
C |
1/1.8' |
I1.1X110T26 |
I1.2X106TC26 |
1.20 |
106 |
0.81 |
0.041 |
0.008 |
14.6 |
0.30 |
1' |
123.0 |
41.0 |
51.0 |
26 |
22 |
C |
2/3' |
I1.2X106T26 |
I1.2X110TC22 |
1.20 |
110 |
0.76 |
0.044 |
0.008 |
13.6 |
0.38 |
1' |
77.5 |
35.0 |
37.5 |
22 |
22 |
C |
1/2.5' |
I1.2X110T22 |
I1.2X130TC26 |
1.20 |
130 |
1.01 |
0.033 |
0.010 |
18.2 |
0.42 |
1' |
107.4 |
41.0 |
35.4 |
26 |
22 |
C |
1/2' |
I1.2X130T26 |
I1.2X150TC26 |
1.20 |
150 |
1.96 |
0.017 |
0.020 |
35.3 |
0.90 |
1' |
100.5 |
41.0 |
28.5 |
26 |
22 |
C |
2/3' |
I1.2X150T26 |
I1.2X150TC26 |
1.20 |
150 |
1.33 |
0.025 |
0.013 |
24.0 |
0.90 |
1' |
100.5 |
41.0 |
28.5 |
26 |
22 |
C |
2/3' |
I1.2X150T26 |
I1.2X150TC26 |
1.20 |
150 |
1.01 |
0.033 |
0.010 |
18.2 |
0.90 |
1' |
100.5 |
41.0 |
28.5 |
26 |
22 |
C |
2/3' |
I1.2X150T26 |
I1.2X150TC26 |
1.20 |
150 |
0.81 |
0.041 |
0.008 |
14.6 |
0.60 |
1' |
100.5 |
41.0 |
28.5 |
26 |
22 |
C |
1/1.8' |
I1.2X150T26 |
I1.2X200TC26 |
1.20 |
200 |
2.08 |
0.016 |
0.021 |
37.5 |
0.90 |
1' |
108.0 |
41.0 |
36.0 |
26 |
22 |
C |
2/3' |
I1.2X200T26 |
I1.2X410TCC26 |
1.20 |
410 |
1.67 |
0.020 |
0.017 |
30.0 |
0.38 |
1' |
166.5 |
41.0 |
94.5 |
26 |
22 |
C |
2/3' |
I1.2X410TC26 |
I1.26X155TC26 |
1.26 |
155 |
0.88 |
0.036 |
0.009 |
17.5 |
0.34 |
1' |
186.6 |
28.5 |
123.5 |
26 |
26 |
C |
1' |
I1.26X155TC26 |
I1.5X180TC26 |
1.49 |
180 |
0.79 |
0.034 |
0.010 |
21.9 |
0.56 |
1' |
131.5 |
41.0 |
59.5 |
26 |
22 |
C |
1' |
I1.5X180T26 |
I1.5X100TC26 |
1.50 |
100 |
0.65 |
0.041 |
0.008 |
18.3 |
0.33 |
1' |
137.9 |
41.0 |
65.9 |
26 |
22 |
C |
1' |
I1.5X100T26 |
I1.5X110TC22 |
1.50 |
110 |
0.61 |
0.044 |
0.008 |
17.0 |
0.52 |
1' |
103.5 |
35.0 |
37.5 |
22 |
22 |
C |
1/2' |
I1.5X110T22 |
I1.5X110TC26 |
1.50 |
110 |
0.54 |
0.049 |
0.007 |
15.3 |
0.44 |
1' |
119.0 |
41.0 |
47.0 |
26 |
22 |
C |
1/2' |
I1.5X110T26 |
I1.5X140TC26 |
1.50 |
140 |
0.65 |
0.041 |
0.008 |
18.3 |
0.73 |
1' |
109.5 |
41.0 |
37.5 |
26 |
22 |
C |
2/3' |
I1.5X140T26 |
I1.5X150TC26 |
1.50 |
150 |
0.65 |
0.041 |
0.008 |
18.3 |
0.60 |
1' |
109.5 |
41.0 |
37.5 |
26 |
22 |
C |
2/3' |
I1.5X150T26 |
I1.5X68TC26 |
1.50 |
68 |
0.81 |
0.033 |
0.010 |
22.7 |
0.30 |
1' |
131.5 |
41.0 |
59.5 |
26 |
22 |
C |
2/3' |
I1.5X68T26 |
I1.5X68TC26 |
1.50 |
68 |
0.65 |
0.041 |
0.008 |
18.3 |
0.30 |
1' |
131.5 |
41.0 |
59.5 |
26 |
22 |
C |
2/3' |
I1.5X68T26 |
I1.5X96TC26 |
1.50 |
96 |
1.57 |
0.017 |
0.020 |
44.1 |
0.33 |
1' |
140.5 |
41.0 |
68.5 |
26 |
22 |
C |
1' |
I1.5X96T26 |
I1.5X96TC26 |
1.50 |
96 |
1.07 |
0.025 |
0.013 |
30.0 |
0.33 |
1' |
140.5 |
41.0 |
68.5 |
26 |
22 |
C |
1' |
I1.5X96T26 |
I1.5X96TC26 |
1.50 |
96 |
0.81 |
0.033 |
0.010 |
22.7 |
0.33 |
1' |
140.5 |
41.0 |
68.5 |
26 |
22 |
C |
1' |
I1.5X96T26 |
I1.5X96TC26 |
1.50 |
96 |
0.65 |
0.041 |
0.008 |
18.3 |
0.33 |
1' |
140.5 |
41.0 |
68.5 |
26 |
22 |
C |
1' |
I1.5X96T26 |
I1.5X96TC26 |
1.50 |
96 |
0.54 |
0.049 |
0.007 |
15.3 |
0.33 |
1' |
140.5 |
41.0 |
68.5 |
26 |
22 |
C |
1' |
I1.5X96T26 |
- |
2.00 |
90 |
0.34 |
0.059 |
0.006 |
16.9 |
0.23 |
1' |
94.5 |
35.0 |
54.5 |
22 |
22 |
C |
1' |
I2X90T22 |
I2X110TC22 |
2.00 |
110 |
1.18 |
0.017 |
0.020 |
58.8 |
0.32 |
1' |
108.5 |
35.0 |
42.5 |
22 |
22 |
C |
1/2' |
I2X110T22 |
型號 |
倍數 |
工作距 |
景深 |
數值孔徑 |
分辨率 |
孔徑F# |
畸變% |
遠心度 |
鏡身L0 |
L1 |
L2 |
d1 |
d2 |
接口 |
最大接收器 |
外形圖下載 |
I2X110TC22 |
2.00 |
110 |
0.83 |
0.024 |
0.014 |
41.7 |
0.32 |
1' |
108.5 |
35.0 |
42.5 |
22 |
22 |
C |
1/2' |
I2X110T22 |
I2X110TC22 |
2.00 |
110 |
0.61 |
0.033 |
0.010 |
30.3 |
0.32 |
1' |
108.5 |
35.0 |
42.5 |
22 |
22 |
C |
1/2' |
I2X110T22 |
I2X110TC22 |
2.00 |
110 |
0.49 |
0.041 |
0.008 |
24.4 |
0.32 |
1' |
108.5 |
35.0 |
42.5 |
22 |
22 |
C |
1/2' |
I2X110T22 |
I2X110TC26 |
2.00 |
110 |
1.18 |
0.017 |
0.020 |
58.8 |
0.36 |
1' |
126.5 |
41.0 |
54.5 |
26 |
22 |
C |
2/3' |
I2X110T26 |
I2X110TC26 |
2.00 |
110 |
0.83 |
0.024 |
0.014 |
41.7 |
0.36 |
1' |
126.5 |
41.0 |
54.5 |
26 |
22 |
C |
2/3' |
I2X110T26 |
I2X110TC26 |
2.00 |
110 |
0.61 |
0.033 |
0.010 |
30.3 |
0.36 |
1' |
126.5 |
41.0 |
54.5 |
26 |
22 |
C |
2/3' |
I2X110T26 |
I2X110TC26 |
2.00 |
110 |
0.49 |
0.041 |
0.008 |
24.4 |
0.36 |
1' |
126.5 |
41.0 |
54.5 |
26 |
22 |
C |
2/3' |
I2X110T26 |
I2X110TC26_Y18 |
2.00 |
110 |
0.87 |
0.023 |
0.015 |
43.5 |
0.96 |
1' |
131.5 |
41.0 |
59.5 |
26 |
22 |
C |
1' |
I2X110T26_Y18 |
I2X110TC26_Y18 |
2.00 |
110 |
0.61 |
0.033 |
0.010 |
30.3 |
0.96 |
1' |
131.5 |
41.0 |
59.5 |
26 |
22 |
C |
1' |
I2X110T26_Y18 |
I2X110TC26_Y18 |
2.00 |
110 |
0.49 |
0.041 |
0.008 |
24.4 |
0.96 |
1' |
131.5 |
41.0 |
59.5 |
26 |
22 |
C |
1' |
I2X110T26_Y18 |
I2X145TC22 |
2.00 |
145 |
0.57 |
0.035 |
0.010 |
28.6 |
0.18 |
1' |
125.5 |
35.0 |
59.5 |
22 |
22 |
C |
2/3' |
I2X145T22 |
I2X150TC26 |
2.00 |
150 |
0.49 |
0.041 |
0.008 |
24.4 |
0.18 |
1' |
114.5 |
41.0 |
42.5 |
26 |
22 |
C |
1/2' |
I2X150T26 |
I2X150TC26 |
2.00 |
150 |
0.49 |
0.041 |
0.008 |
24.4 |
0.18 |
1' |
114.5 |
41.0 |
42.5 |
26 |
22 |
C |
1/2' |
I2X150T26 |
I2X180TC26 |
2.00 |
180 |
0.49 |
0.041 |
0.008 |
24.4 |
0.32 |
1' |
117.5 |
41.0 |
45.5 |
26 |
22 |
C |
1/2' |
I2X180T26 |
I2.5X130TC26 |
2.47 |
130 |
0.39 |
0.041 |
0.008 |
30.1 |
0.34 |
1' |
149.0 |
41.0 |
77.0 |
26 |
22 |
C |
4/3' |
I2.5X130T26 |
I3.5X130TC22 |
3.50 |
130 |
0.25 |
0.045 |
0.007 |
38.9 |
0.17 |
1' |
134.5 |
35.0 |
68.5 |
22 |
22 |
C |
2/3' |
I3.5X130T22 |
I3.5X130TC22 |
3.50 |
130 |
0.25 |
0.045 |
0.007 |
38.9 |
0.17 |
1' |
134.5 |
35.0 |
68.5 |
22 |
22 |
C |
2/3' |
I3.5X130T22 |
I4X17TC22 |
4.00 |
17 |
0.11 |
0.092 |
0.004 |
21.7 |
0.20 |
1' |
68.5 |
35.0 |
28.5 |
22 |
22 |
C |
1/2' |
I4X17T22 |
型號 |
倍數 |
工作距 |
景深 |
數值孔徑 |
分辨率 |
孔徑F# |
畸變% |
遠心度 |
鏡身L0 |
L1 |
L2 |
d1 |
d2 |
接口 |
最大接收器 |
外形圖下載 |
|
|
