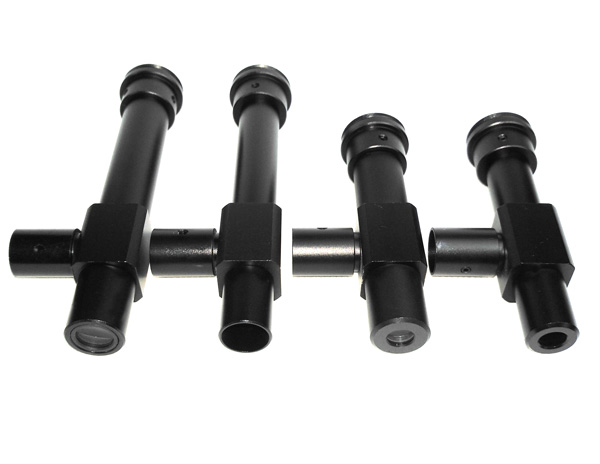

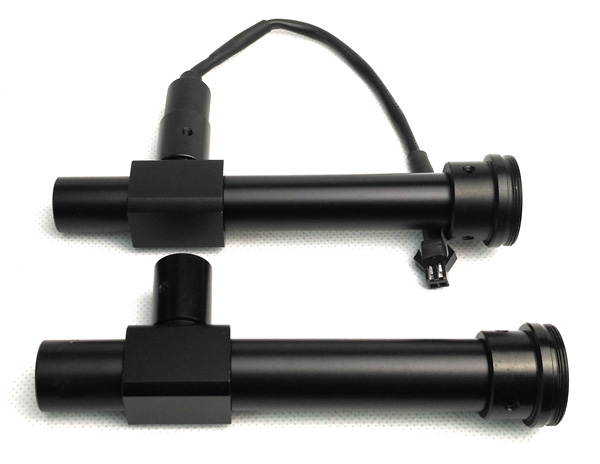

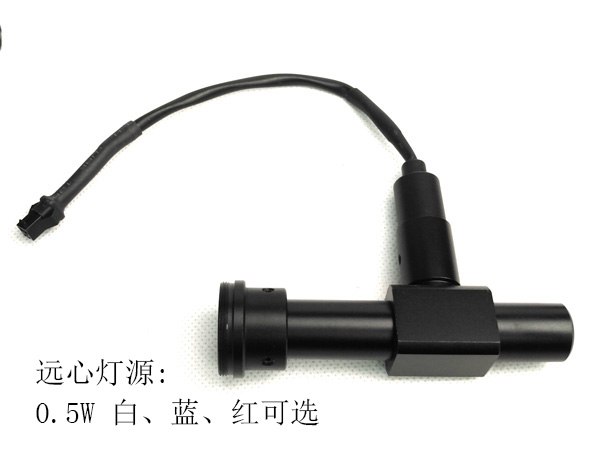

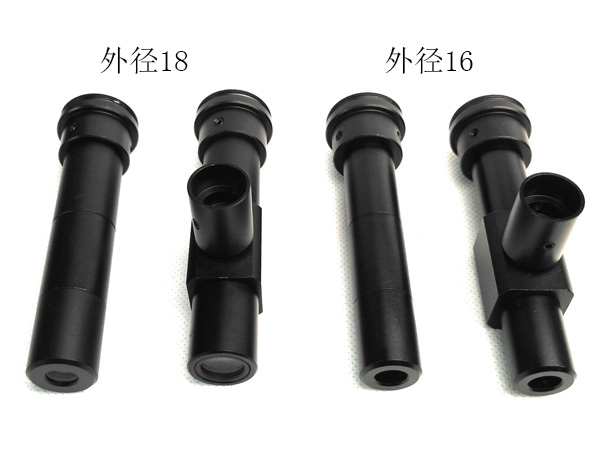

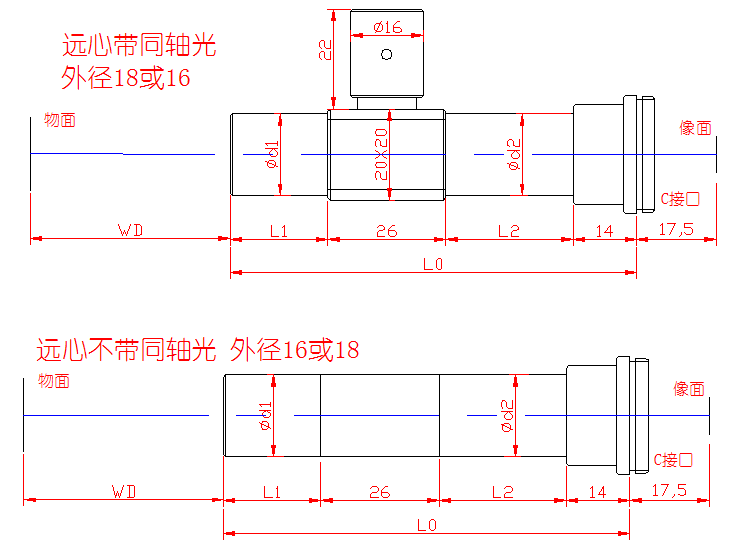

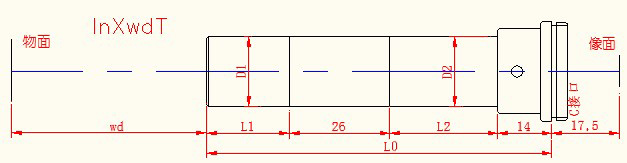

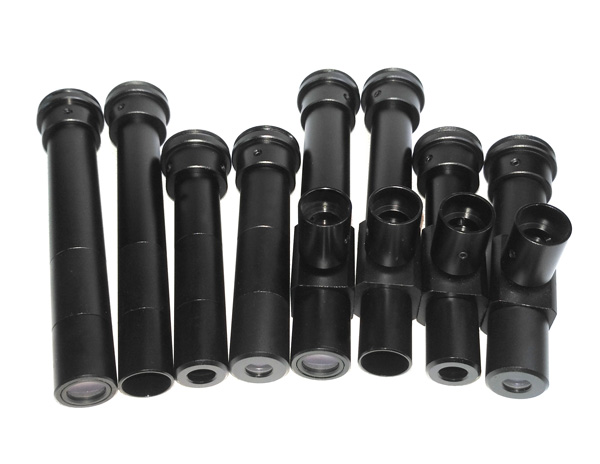

	遠心鏡頭,遠心同軸光鏡頭 遠心按頭部外徑分為50mm,32mm,26mm,22mm,20mm,18mm,16mm, 32mm以下的大部份遠心鏡頭可以同時提供同軸光與非同軸規格。 遠心鏡頭50 遠心鏡頭32 遠心鏡頭26 遠心鏡頭20 遠心鏡頭18/16 遠心鏡頭，外徑18/16，視場最大10，適用相機1/4'至2/3' 1.采用物方遠心設計,C標準接口,適用相機芯片尺寸:1',2/3',1/1.8',1/2',1/3',1/4',1/6'，最大支持芯片尺寸祥見下表; 2.鏡頭頭部外徑16，18，20安裝外徑為16或18；頭部外徑22，26，32mm，50mm安裝外徑為22mm; 3.同軸光照明,附送遠心專用LED同軸照明燈源（不含3V50A電源)，有內部8mm,10mm,14mm的光源接口，或8mm光纖轉接口; 4.可以按用戶要求定制其它倍率及工作距的鏡頭。 產品列表說明： 產品按放大率從小到大排列，相同放大率按工作距從小到大排列。 外形圖在最后一列，圖中WD表示工作距。型號中I表示I型C接口，J表示型C接口，接著是放大率，X后面是工作距， T表示遠心，C表示同軸照明，型號中不帶C的表示沒有相同的同軸光型號，帶C的一般有等同的非同軸光型號 最后面加數字表示頭部外徑或安裝外徑。最右邊是圖紙鏈接。 型號 倍數 工作距 景深 數值孔徑 分辨率 孔徑F# 畸變% 遠心度 鏡身L0 L1 L2 d1 d2 接口 最大接收器 外形圖下載 J0.4X40TC16 0.40 40 3.70 0.027 0.012 7.4 0.40 0.10 81.0 21.5 54.5 16 16 C 1/4' J0.4X40T16 J0.5X65T16 0.50 65 4.00 0.020 0.017 12.5 0.11 0.10 55.6 22.1 28.5 16 16 C 1/3' J0.5X65T16 I0.5X110TC18 0.50 110 3.48 0.023 0.015 10.9 0.19 0.10 73.8 21.5 12.3 18/16 18 C 1/3' I0.5X110T18 I0.5X110TC18 0.50 110 5.33 0.015 0.022 16.7 0.19 0.10 73.8 21.5 12.3 18/16 18 C 1/3' I0.5X110T18 J0.5X65T16 0.50 65 3.64 0.022 0.015 11.4 0.35 0.10 54.2 21.5 27.7 16 16 C 1/3' J0.5X65T16 J0.5X80T16 0.50 80 4.21 0.019 0.018 13.2 0.30 0.10 64.8 21.5 38.3 16 16 C 1/3' J0.5X80T16 I0.6X48TC18 0.60 48 2.15 0.031 0.011 9.7 0.19 0.10 73.8 21.5 12.3 18/16 18 C 1/3' I0.6X48T18 J0.75X56TC18 0.75 56 1.90 0.028 0.012 13.4 0.10 0.10 54.0 6.5 16.5 16 18 C 1/2.5' I0.9X40T18 J0.8X75T16 0.80 75 1.56 0.032 0.010 12.5 0.78 0.10 64.8 21.5 38.3 16 16 C 1/2' J0.8X75T16 I0.8X65TC 0.80 65 1.16 0.043 0.008 9.3 0.10 0.10 89.5 21.5 28.0 18/16 18/16 C 1/2' I0.8X65T I0.8X65TC 0.80 65 1.47 0.034 0.010 11.8 0.10 0.10 89.5 21.5 28.0 18/16 18/16 C 1/2' I0.8X65T I0.8X65TC 0.80 65 1.92 0.026 0.013 15.4 0.10 0.10 89.5 21.5 28.0 18/16 18/16 C 1/2' I0.8X65T I0.8X65TC 0.80 65 2.94 0.017 0.020 23.5 0.10 0.10 89.5 21.5 28.0 18/16 18/16 C 1/2' I0.8X65T I0.8X70TC 0.80 70 1.11 0.045 0.007 8.9 0.03 0.10 96.0 21.5 34.5 18/16 18/16 C 1/3' I0.8X70T I0.8X70TC 0.80 70 1.39 0.036 0.009 11.1 0.03 0.10 96.0 21.5 34.5 18/16 18/16 C 1/3' I0.8X70T I0.8X70TC 0.80 70 1.85 0.027 0.012 14.8 0.03 0.10 96.0 21.5 34.5 18/16 18/16 C 1/2.5' I0.8X70T I0.8X70TC 0.80 70 2.78 0.018 0.019 22.2 0.03 0.10 96.0 21.5 34.5 18/16 18/16 C 1/2.5' I0.8X70T I0.9X115TC 0.86 118 0.89 0.045 0.007 11.1 0.13 0.10 89.5 21.5 28.0 18/16 18/16 C 1/2' I0.9X115T I0.9X40TC18 0.90 40 0.71 0.063 0.005 7.1 0.10 0.10 61.5 6.5 15.0 16 18 C 1/2' I0.9X40T18 I0.9X40TC18 0.90 40 0.71 0.063 0.005 7.1 0.10 0.10 61.5 6.5 15.0 16 18 C 1/2' I0.9X40T18 I0.9X40TC18 0.90 40 0.93 0.048 0.007 9.4 0.10 0.10 61.5 6.5 15.0 16 18 C 1/2' I0.9X40T18 I0.9X40TC18 0.90 40 0.93 0.048 0.007 9.4 0.10 0.10 61.5 6.5 15.0 16 18 C 1/2' I0.9X40T18 I0.9X40TC18 0.90 40 1.39 0.032 0.010 14.1 0.10 0.10 61.5 6.5 15.0 16 18 C 1/2' I0.9X40T18 I0.9X40TC18 0.90 40 1.39 0.032 0.010 14.1 0.10 0.10 61.5 6.5 15.0 16 18 C 1/2' I0.9X40T18 J0.9X40TC18 0.90 40 0.71 0.063 0.005 7.1 0.10 0.10 61.5 6.5 24.0 16 18 C 1/2' I0.9X40T18 J0.9X40TC18 0.90 40 0.93 0.048 0.007 9.4 0.10 0.10 61.5 6.5 24.0 16 18 C 1/2' I0.9X40T18 J0.9X40TC18 0.90 40 1.39 0.032 0.010 14.1 0.10 0.10 61.5 6.5 24.0 16 18 C 1/2' I0.9X40T18 I1X150TC18 0.93 151 1.54 0.028 0.012 16.6 0.78 0.10 81.0 21.5 19.5 18/16 18 C 1/1.8' I1X150T18 I1X150TC18 0.93 151 2.05 0.021 0.016 22.1 0.78 0.10 81.0 21.5 19.5 18/16 18 C 1/1.8' I1X150T18 I1X150TC18 0.93 151 3.07 0.014 0.024 33.2 0.78 0.10 81.0 21.5 19.5 18/16 18 C 1/1.8' I1X150T18 J1X150T16 1.00 150 1.43 0.028 0.012 17.9 0.78 0.10 83.0 34.0 44.0 16 16 C 1/1.8' J1X150T16 J1X150T16 1.00 150 1.90 0.021 0.016 23.8 0.78 0.10 109.0 34.0 44.0 16 16 C 1/1.8' J1X150T16 J1X150T16 1.00 150 2.86 0.014 0.024 35.7 0.78 0.10 109.0 34.0 44.0 16 16 C 1/1.8' J1X150T16 I1X110TC 1.00 106 0.89 0.045 0.007 11.1 0.13 0.10 96.0 21.5 34.5 18/16 18/16 C 1/3' I1X110T 型號 倍數 工作距 景深 數值孔徑 分辨率 孔徑F# 畸變% 遠心度 鏡身L0 L1 L2 d1 d2 接口 最大接收器 外形圖下載 I1X110TC 1.00 106 1.11 0.036 0.009 13.9 0.19 0.10 96.0 21.5 34.5 18/16 18/16 C 1/2.5' I1X110T I1X110TC 1.00 106 1.48 0.027 0.012 18.5 0.23 0.10 96.0 21.5 34.5 18/16 18/16 C 1/2' I1X110T I1X110TC 1.00 106 1.90 0.021 0.016 23.8 0.23 0.10 96.0 21.5 34.5 18/16 18/16 C 1/2' I1X110T I1X110TC 1.00 106 2.50 0.016 0.021 31.3 0.23 0.10 96.0 21.5 34.5 18/16 18/16 C 1/2' I1X110T I1X155TC18 1.00 155 1.90 0.021 0.016 23.8 0.50 0.10 73.8 21.5 12.3 18/16 18 C 1/2' I1X155T18 I1X168TC18 1.00 168 1.54 0.026 0.013 19.2 0.24 0.10 86.3 34.0 12.3 16 18 C 1/3' I1X168T18 I1X180TC18 1.00 180 1.54 0.026 0.013 19.2 0.40 0.10 73.8 21.5 12.3 18/16 18 C 1/2' I1X180T18 I1X180TC18 1.00 180 2.00 0.020 0.017 25.0 0.40 0.10 73.8 21.5 12.3 18/16 18 C 1/2' I1X180T18 I1X180TC18 1.00 180 3.08 0.013 0.026 38.5 0.40 0.10 73.8 21.5 12.3 18/16 18 C 1/2' I1X180T18 I1X30TC18 1.00 30 1.25 0.032 0.010 15.6 0.10 0.10 61.5 6.5 15.0 16 18 C 1/2' I1X30T18 I1X42TC18 1.00 42 1.25 0.032 0.010 15.6 0.02 0.10 66.0 6.5 19.5 16 18 C 1/3' I1X42T18 I1X70TC 1.00 70 0.75 0.053 0.006 9.4 0.10 0.10 96.0 21.5 34.5 18/16 18/16 C 1/2.5' I1X70T I1X70TC 1.00 70 0.95 0.042 0.008 11.9 0.10 0.10 96.0 21.5 34.5 18/16 18/16 C 1/2' I1X70T I1X70TC 1.00 70 1.29 0.031 0.011 16.1 0.10 0.10 96.0 21.5 34.5 18/16 18/16 C 1/1.8' I1X70T I1X70TC 1.00 70 1.82 0.022 0.015 22.7 0.10 0.10 96.0 21.5 34.5 18/16 18/16 C 1/1.8' I1X70T J1X150TC16 1.00 150 1.43 0.028 0.012 17.9 0.78 0.10 83.2 21.5 30.7 16 16 C 1/1.8' J1X150T16 J1X150TC16 1.00 150 1.90 0.021 0.016 23.8 0.78 0.10 83.2 21.5 30.7 16 16 C 1/1.8' J1X150T16 J1X150TC16 1.00 150 2.86 0.014 0.024 35.7 0.78 0.10 83.2 21.5 30.7 16 16 C 1/1.8' J1X150T16 J1X60TC 1.00 60 0.85 0.047 0.007 10.6 0.02 0.10 46.5 6.5 9.0 16 18/16 C 1/3' J1X60T J1X60TC 1.00 60 1.25 0.032 0.010 15.6 0.02 0.10 46.5 6.5 9.0 16 18/16 C 1/3' J1X60T I1.1X35TC 1.10 35 0.76 0.048 0.007 11.5 0.24 0.10 105.3 21.5 43.8 18/16 18/16 C 1/1.8' I1.1X35T I1.1X35TC 1.10 35 0.85 0.043 0.008 12.8 0.24 0.10 105.3 21.5 43.8 18/16 18/16 C 1/1.8' I1.1X35T I1.1X35TC 1.10 35 1.14 0.032 0.010 17.2 0.35 0.10 105.3 21.5 43.8 18/16 18/16 C 2/3' I1.1X35T I1.1X35TC 1.10 35 1.73 0.021 0.016 26.2 0.35 0.10 105.3 21.5 43.8 18/16 18/16 C 2/3' I1.1X35T I1.2X109TC18 1.20 109 0.76 0.044 0.008 13.6 0.50 0.10 76.5 21.5 15.0 18/16 18 C 1/2' I1X155T18 I1.2X110T 1.20 110 1.59 0.021 0.016 28.6 0.10 0.10 123.5 21.5 62.0 18/16 18/16 C 1/2' I1.2X110T I1.2X50TC18 1.20 50 0.71 0.047 0.007 12.8 0.22 0.10 58.8 6.5 12.3 16 18 C 1/2.5' I1.2X50T18 I1.2X50TC18 1.20 50 1.08 0.031 0.011 19.4 0.28 0.10 58.8 6.5 12.3 16 18 C 1/2' I1.2X50T18 J1.2X56TC 1.20 56 0.71 0.047 0.007 12.8 0.28 0.10 54.0 6.5 16.5 16 18/16 C 1/2' J1.2X56T I1.2X57T 1.20 57 0.62 0.054 0.006 27.8 0.30 0.10 52.0 3.5 34.5 M15*0.5 18/16 C 1/2' I1.2X57T I1.2X85TC 1.25 85 0.62 0.052 0.006 12.0 0.14 0.10 89.5 21.5 28.0 18/16 18/16 C 1/2' I1.2X85T I1.2X85TC 1.25 85 0.78 0.041 0.008 15.2 0.16 0.10 89.5 21.5 28.0 18/16 18/16 C 1/1.8' I1.2X85T I1.2X85TC 1.25 85 1.03 0.031 0.011 20.2 0.17 0.10 89.5 21.5 28.0 18/16 18/16 C 2/3' I1.2X85T I1.2X85TC 1.25 85 1.60 0.020 0.017 31.3 0.17 0.10 89.5 21.5 28.0 18/16 18/16 C 2/3' I1.2X85T I1.5X105TC18 1.50 104 0.50 0.053 0.006 14.2 0.50 0.10 81.0 21.5 19.5 18/16 18 C 1/2' I1.5X105T18 型號 倍數 工作距 景深 數值孔徑 分辨率 孔徑F# 畸變% 遠心度 鏡身L0 L1 L2 d1 d2 接口 最大接收器 外形圖下載 I1.5X105TC18 1.50 104 0.62 0.043 0.008 17.4 0.70 0.10 81.0 21.5 19.5 18/16 18 C 1/1.8' I1.5X105T18 I1.5X105TC18 1.50 104 0.86 0.031 0.011 24.2 0.95 0.10 81.0 21.5 19.5 18/16 18 C 2/3' I1.5X105T18 I1.5X105TC18 1.50 104 1.27 0.021 0.016 35.7 0.95 0.10 81.0 21.5 19.5 18/16 18 C 2/3' I1.5X105T18 I1.5X110TC 1.50 111 0.62 0.043 0.008 17.4 0.32 0.10 96.0 21.5 34.5 18/16 18/16 C 1/1.8' I1.5X110T I1.5X110TC 1.50 111 0.86 0.031 0.011 24.2 0.10 96.0 21.5 34.5 18/16 18/16 C 2/3' I1.5X110T I1.5X110TC 1.50 111 1.27 0.021 0.016 35.7 0.42 0.10 96.0 21.5 34.5 18/16 18/16 C 2/3' I1.5X110T I1.5X150TC16 1.50 150 0.95 0.028 0.012 26.8 0.39 0.10 89.5 21.5 28.0 16 16 C 1/1.8' I1.5X150T16 I1.5X150TC16 1.50 150 0.95 0.028 0.012 26.8 0.39 0.10 89.5 21.5 28.0 18/16 18/16 C 1/1.8' I1.5X150T16 I1.5X150TC16 1.50 150 1.27 0.021 0.016 35.7 0.39 0.10 89.5 21.5 28.0 18/16 18/16 C 1/1.8' I1.5X150T16 I1.5X150TC18 1.50 150 0.86 0.031 0.011 24.2 0.56 0.10 81.0 21.5 19.5 18/16 18 C 1/1.8' I1.5X150T18 I1.5X150TC18 1.50 150 1.27 0.021 0.016 35.7 0.74 0.10 81.0 21.5 19.5 18/16 18 C 2/3' I1.5X150T18 I1.5X75TC 1.52 76 0.51 0.052 0.006 14.6 0.14 0.10 105.3 21.5 43.8 18/16 18/16 C 2/3' I1.5X75T I1.5X75TC 1.52 76 0.64 0.041 0.008 18.5 0.14 0.10 105.3 21.5 43.8 18/16 18/16 C 2/3' I1.5X75T I1.5X75TC 1.52 76 0.85 0.031 0.011 24.5 0.14 0.10 105.3 21.5 43.8 18/16 18/16 C 2/3' I1.5X75T I1.5X75TC 1.52 76 1.25 0.021 0.016 36.2 0.14 0.10 105.3 21.5 43.8 18/16 18/16 C 2/3' I1.5X75T I1.75X100TC 1.75 100 0.44 0.052 0.006 16.8 0.40 0.10 89.5 21.5 28.0 18/16 18/16 C 1/2' I1.2X85T I1.8X70TC 1.80 70 0.38 0.058 0.006 15.5 0.07 0.10 117.8 34.0 43.8 16 18/16 C 1/1.8' I1.8X70T I2X110TC 2.00 110 0.48 0.042 0.008 23.8 0.55 0.10 96.0 21.5 34.5 18/16 18/16 C 2/3' I2X110T I1.8X70TC 1.80 70 0.48 0.046 0.007 19.6 0.07 0.10 117.8 34.0 43.8 16 18/16 C 2/3' I1.8X70T I2X110TC 2.00 110 0.95 0.021 0.016 47.6 0.55 0.10 96.0 21.5 34.5 18/16 18/16 C 2/3' I2X110T I1.8X70TC 1.80 70 0.63 0.035 0.010 25.7 0.07 0.10 117.8 34.0 43.8 16 18/16 C 2/3' I1.8X70T I1.8X70TC 1.80 70 0.97 0.023 0.015 39.1 0.07 0.10 117.8 34.0 43.8 16 18/16 C 2/3' I1.8X70T I2X69TC18 1.90 70 0.33 0.064 0.005 14.8 0.14 0.10 123.5 21.5 62.0 18/16 18/16 C 2/3' I2X69T I2X69TC18 1.90 70 0.40 0.053 0.006 17.9 0.14 0.10 123.5 21.5 62.0 18/16 18/16 C 2/3' I2X69T I2X69TC18 1.90 70 0.49 0.043 0.008 22.1 0.14 0.10 123.5 21.5 62.0 18/16 18/16 C 2/3' I2X69T I2X69TC18 1.90 70 0.66 0.032 0.010 29.7 0.14 0.10 123.5 21.5 62.0 18/16 18/16 C 2/3' I2X69T I2X69TC18 1.90 70 1.00 0.021 0.016 45.2 0.14 0.10 123.5 21.5 62.0 18/16 18/16 C 2/3' I2X69T I2X100TC 2.00 100 0.41 0.049 0.007 20.4 0.56 0.10 96.0 21.5 34.5 18/16 18/16 C 2/3' I2X100T I2X100TC 2.00 100 0.50 0.040 0.008 25.0 0.56 0.10 96.0 21.5 34.5 18/16 18/16 C 2/3' I2X100T I2X100TC 2.00 100 0.67 0.030 0.011 33.3 0.56 0.10 96.0 21.5 34.5 18/16 18/16 C 2/3' I2X100T I2X100TC 2.00 100 1.00 0.020 0.017 50.0 0.56 0.10 96.0 21.5 34.5 18/16 18/16 C 2/3' I2X100T I2X110TC 2.00 110 0.38 0.053 0.006 18.9 0.32 0.10 96.0 21.5 34.5 18/16 18/16 C 1/2' I2X110T I2X110TC 2.00 110 0.67 0.030 0.011 33.3 0.55 0.10 96.0 21.5 34.5 18/16 18/16 C 2/3' I2X110T I2X130TC 2.00 130 0.48 0.042 0.008 23.8 0.24 0.10 105.3 21.5 43.8 18/16 18/16 C 1/2' I2X130T I2X150TC 2.00 150 0.65 0.031 0.011 32.3 0.28 0.10 96.0 21.5 34.5 18/16 18/16 C 1/2' I2X150T 型號 倍數 工作距 景深 數值孔徑 分辨率 孔徑F# 畸變% 遠心度 鏡身L0 L1 L2 d1 d2 接口 最大接收器 外形圖下載 I2X165TC 2.00 165 0.67 0.030 0.011 33.3 0.16 0.10 105.3 21.5 43.8 18/16 18/16 C 2/3' I2X165T I2X45TC 2.00 45 0.25 0.080 0.004 12.5 0.12 0.10 81.0 6.5 34.5 16 18/16 C 1/2.3' I2X45T I2X45TC 2.00 45 0.31 0.064 0.005 15.6 0.17 0.10 81.0 6.5 34.5 16 18/16 C 1/1.8' I2X45T I2X45TC 2.00 45 0.42 0.048 0.007 20.8 0.23 0.10 81.0 6.5 34.5 16 18/16 C 2/3' I2X45T I2X45TC 2.00 45 0.63 0.032 0.010 31.3 0.23 0.10 81.0 6.5 34.5 16 18/16 C 2/3' I2X45T I2X70TC18 2.00 70 0.41 0.048 0.007 20.7 0.39 0.10 66.0 6.5 19.5 16 18 C 1/2' I2X70T18 I2X85TC 2.00 80 0.37 0.054 0.006 18.5 0.41 0.10 96.0 21.5 34.5 18/16 18/16 C 1/2' I2X85T I2X85TC 2.00 80 0.47 0.043 0.008 23.3 0.41 0.10 96.0 21.5 34.5 18/16 18/16 C 1/2' I2X85T I2X85TC 2.00 80 0.63 0.032 0.010 31.3 0.41 0.10 96.0 21.5 34.5 18/16 18/16 C 2/3' I2X85T I2X85TC 2.00 80 0.95 0.021 0.016 47.6 0.41 0.10 96.0 21.5 34.5 18/16 18/16 C 2/3' I2X85T I2X95TC 2.00 95 0.63 0.032 0.010 31.3 0.79 0.10 96.0 21.5 34.5 18/16 18/16 C 2/3' I2X95T I2X65T 2.00 65 0.43 0.047 0.007 21.3 0.60 0.10 56.5 14.5 28.0 16 18/16 C 2/3' I2X65T16 I2.5X110TC 2.30 110 0.27 0.064 0.005 18.0 0.24 0.10 105.3 21.5 43.8 18/16 18/16 C 1/2' I2.5X110T I2.5X110TC 2.30 110 0.33 0.053 0.006 21.7 0.41 0.10 105.3 21.5 43.8 18/16 18/16 C 2/3' I2.5X110T I2.5X110TC 2.30 110 0.41 0.042 0.008 27.4 0.41 0.10 105.3 21.5 43.8 18/16 18/16 C 2/3' I2.5X110T I2.5X110TC 2.30 110 0.58 0.030 0.011 38.3 0.41 0.10 105.3 21.5 43.8 18/16 18/16 C 2/3' I2.5X110T I2.5X110TC 2.30 110 0.83 0.021 0.016 54.8 0.41 0.10 105.3 21.5 43.8 18/16 18/16 C 2/3' I2.5X110T I2.4X43TC 2.40 43 0.35 0.048 0.007 25.0 0.12 0.10 90.3 6.5 43.8 16 18/16 C 1/2' I2.4X43T I2.5X68TC 2.50 68 0.33 0.048 0.007 25.8 0.23 0.10 81.0 6.5 34.5 16 18/16 C 1/2' I2.5X68T I3X110TC 3.00 110 0.25 0.053 0.006 28.3 0.14 0.10 105.3 21.5 43.8 18/16 18/16 C 2/3' I3X110T I3X110TC 3.00 110 0.31 0.043 0.008 34.9 0.14 0.10 105.3 21.5 43.8 18/16 18/16 C 2/3' I3X110T I3X110TC 3.00 110 0.43 0.031 0.011 48.4 0.14 0.10 105.3 21.5 43.8 18/16 18/16 C 2/3' I3X110T I3X110TC 3.00 110 0.63 0.021 0.016 71.4 0.14 0.10 105.3 21.5 43.8 18/16 18/16 C 2/3' I3X110T I3X65TC 3.00 65 0.24 0.056 0.006 26.8 0.48 0.10 74.5 26.0 34.5 18/16 18/16 C 1/2' I3X65T I3X68TC 3.00 68 0.28 0.048 0.007 31.0 0.17 0.10 90.3 6.5 43.8 16 18/16 C 1/2' I3X68T I4X110TC18 4.00 110 0.23 0.043 0.008 46.5 0.15 0.10 123.5 21.5 62.0 18/16 18/16 C 2/3‘ I4X110T I4X110TC18 4.00 110 0.32 0.031 0.011 64.5 0.15 0.10 123.5 21.5 62.0 18/16 18/16 C 2/3‘ I4X110T I4X110TC18 4.00 110 0.48 0.021 0.016 95.2 0.15 0.10 123.5 21.5 62.0 18/16 18/16 C 2/3‘ I4X110T I4X165TC18 4.00 165 0.33 0.030 0.011 66.7 0.15 0.10 159.6 21.5 98.1 18/16 18 C 2/3‘ I4X165T18 I4X68TC 4.00 68 0.21 0.048 0.007 41.3 0.18 0.10 90.3 6.5 43.8 16 18/16 C 1/2' I4X68T I4X90TC18 4.00 92 0.20 0.051 0.007 39.2 0.15 0.10 117.1 21.5 55.6 18/16 18/16 C 2/3‘ I4X110T J4X36TC16 4.00 36 0.13 0.080 0.004 25.0 0.92 0.10 66.0 6.5 28.5 16 16 C 1/2' J4X36T16 I5X68TC 5.00 68 0.17 0.048 0.007 51.7 0.18 0.10 108.5 6.5 62.0 16 18/16 C 1/2' I5X68T I6X68TC18 6.00 68 0.14 0.048 0.007 62.0 0.07 0.10 126.4 6.5 79.9 16 18 C 1/2' I6X68T18 型號 倍數 工作距 景深 數值孔徑 分辨率 孔徑F# 畸變% 遠心度 鏡身L0 L1 L2 d1 d2 接口 最大接收器 外形圖下載 <button id="hrpa6"><label id="hrpa6"></label></button>
