定倍鏡頭,同軸光鏡頭
同軸光定倍鏡頭可以有非同軸光的規格,但非同軸光的不一定能做成同軸光的方式。
同軸光鏡頭
非同軸光鏡頭
同軸光鏡頭26
其它類鏡頭

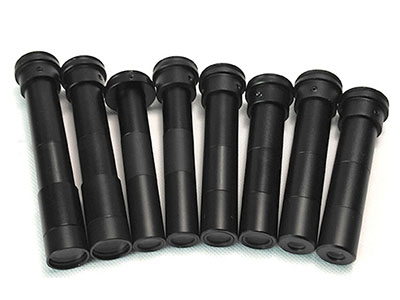

非同軸光鏡頭,定倍鏡頭
,適用相機1/4'至2/3'
1.標準C接口,適用相機芯片尺寸:2/3',1/1.8',1/2',1/3',1/4',1/6',最大支持芯片尺寸祥見下表;
2.鏡頭外徑16~20,安裝外徑16或18mm(祥見表格中部直徑);
3.非同軸光照明,請使用透射照明,或環形光照明等;
4.表中所列數據僅供參考,實際生產時可能會有所調整;
5.可以按用戶要求定制各種倍率及工作距的鏡頭。
產品列表說明:
產品按放大率從小到大排列,相同放大率按工作距從小到大排列。

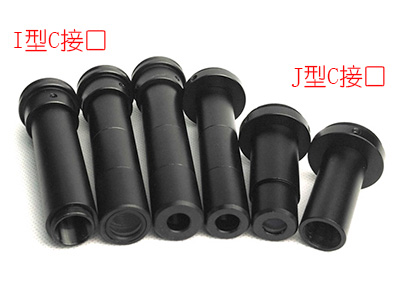

外形圖在最后一列,圖中WD表示工作距。型號中I表示I型接口,J表標示焦中的J型接口,接著是放大率,X后面是工作距,

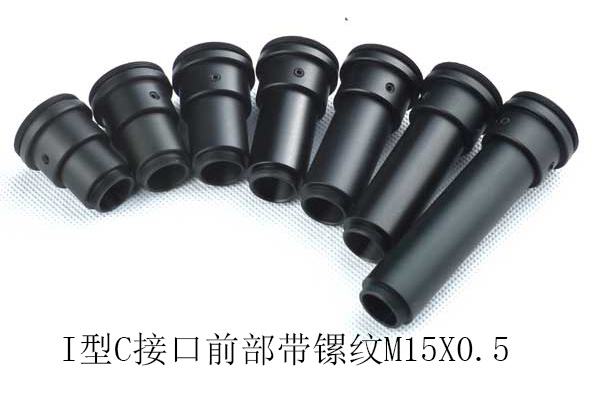

N表示普通型,NM表示前部帶15X0.5的鏍紋,最后面加數字表示外徑.
型號
倍數
工作距
景深
數值孔徑
分辨率
孔徑F#
畸變%
鏡身L0
L1
L2
d1
d2
接口
最大接收器
外形圖下載
I0.05X360N18
0.05
360
205.13
0.004
0.086
6.4
1.60
29.8
3.5
12.3
M15X0.5
18
C
1/2'
I0.05X360N18
I0.08X350N16
0.08
350
125.00
0.004
0.084
10.0
0.53
40.5
26.5
0.0
16
16
C
1/2'
I0.08X350N16
J0.1X200N28
0.10
200
36.36
0.011
0.031
4.5
0.30
40.0
40.0
0.0
28
0
C
3/4'
J0.1X200N28
I0.1X280N16
0.10
280
80.00
0.005
0.067
10.0
0.52
40.5
26.5
0.0
16
16
C
1/2'
I0.1X280N16
J0.1X310N16
0.10
310
12.12
0.033
0.010
1.5
0.36
26.1
3.5
17.6
M15X0.5
16
C
1/2'
J0.1X310N16
I0.1X600NM
0.10
600
80.00
0.005
0.067
10.0
0.03
52.0
3.5
34.5
M15X0.5
18/16
C
1/2'
I0.1X600NM
J0.15X85NM22
0.15
85
19.05
0.014
0.024
5.4
0.90
26.2
4.0
17.2
M20X0.75
22
C
1/2.5'
J0.15X85NM22
J0.15X85NM22
0.15
85
29.63
0.009
0.037
8.3
0.90
26.2
4.0
17.2
M20X0.75
22
C
1/2.5'
J0.15X85NM22
I0.15X130NM18
0.15
130
33.33
0.008
0.042
9.4
0.15
29.8
3.5
12.3
M15X0.5
18
C
1/2'
I0.15X130NM18
J0.17X80N16
0.17
81
16.81
0.014
0.024
6.1
0.93
43.3
38.3
0.0
16
16
C
1/3'
J0.17X80N16
J0.17X108N22
0.17
108
11.76
0.020
0.017
4.3
0.17
35.0
30.0
0.0
22
22
C
1/2'
J0.17X108N22
I0.17X108NM
0.17
108
21.39
0.011
0.031
7.7
0.55
52.0
3.5
34.5
M15X0.5
18/16
C
1/3'
I0.17X108NM
J0.17X110N16
0.17
111
21.39
0.011
0.031
7.7
0.56
49.0
44.0
0.0
16
16
C
1/3'
J0.17X110N16
J0.2X65NM22
0.20
65
11.11
0.018
0.019
5.6
0.90
60.0
4.0
51.0
M20X0.75
22
C
1/2'
J0.2X65NM22
I0.2X95NM
0.20
95
15.38
0.013
0.026
7.7
0.30
45.5
3.5
28.0
M15X0.5
18/16
C
1/2'
I0.2X95NM
I0.2X100N16
0.20
100
15.38
0.013
0.026
7.7
1.10
40.5
26.5
0.0
16
16
C
1/2'
I0.2X100N16
I0.2X110NM18
0.20
110
22.22
0.009
0.037
11.1
0.03
37.0
3.5
19.5
M15X0.5
18
C
1/2'
I0.2X110NM18
I0.2X120N16
0.20
120
18.18
0.011
0.031
9.1
0.86
40.5
26.5
0.0
16
16
C
1/2'
I0.2X120N16
I0.2X140N16
0.20
140
20.00
0.010
0.034
10.0
0.46
40.5
26.5
0.0
16
16
C
1/2'
I0.2X140N16
I0.2X150N
0.20
150
11.76
0.017
0.020
5.9
0.65
56.5
14.5
28.0
16
18/16
C
1/2'
I0.2X150N
I0.2X160N16
0.20
160
20.00
0.010
0.034
10.0
0.37
40.5
26.5
0.0
16
16
C
1/2'
I0.2X160N16
I0.2X160NM
0.20
161
11.76
0.017
0.020
5.9
0.65
45.5
3.5
28.0
M15X0.5
18/16
C
1/2'
I0.2X160NM
I0.2X165N16
0.20
165
11.76
0.017
0.020
5.9
0.38
40.5
26.5
0.0
16
16
C
1/2.5'
I0.2X165N16
J0.2X212NM22
0.20
212
12.50
0.016
0.021
6.3
0.10
46.5
4.0
42.5
M20X0.75
22
C
2/3'
J0.2X212NM22
I0.2X220N16
0.20
220
22.22
0.009
0.037
11.1
0.48
40.5
26.5
0.0
16
16
C
1/2'
I0.2X220N16
I0.2X300N22
0.20
300
14.29
0.014
0.024
7.1
0.18
78.0
26.0
47.0
22
22
C
1/2'
I0.2X300N22
J0.2X300N22
0.20
300
14.29
0.014
0.024
7.1
0.18
77.5
35.0
37.5
22
22
C
1/2'
J0.2X300N22
I0.2X300N22
0.20
300
20.00
0.010
0.034
10.0
0.30
78.0
26.0
47.0
22
22
C
3/4'
I0.2X300N22
J0.2X520N16
0.20
520
20.62
0.010
0.035
10.3
0.43
77.0
26.0
28.5
16
16
C
1/2"
J0.2X520N16
I0.2X500NM
0.20
528
28.57
0.007
0.048
14.3
0.27
52.0
3.5
34.5
M15X0.5
18/16
C
1/2'
I0.2X500NM
I0.22X275N22
0.22
275
12.12
0.015
0.022
7.3
0.20
78.0
26.0
47.0
22
22
C
1/2'
I0.22X275N22
I0.22X275N22
0.22
275
16.53
0.011
0.031
10.0
0.30
77.5
35.0
37.5
22
22
C
3/4'
I0.22X275N22
I0.25X73NM
0.25
73
10.67
0.015
0.022
8.3
0.05
52.0
3.5
34.5
M15X0.5
18/16
C
1/2'
I0.25X73NM
I0.25X115N16
0.25
115
14.55
0.011
0.031
11.4
0.44
40.5
26.5
0.0
16
16
C
1/2'
I0.25X115N16
型號
倍數
工作距
景深
數值孔徑
分辨率
孔徑F#
畸變%
鏡身L0
L1
L2
d1
d2
接口
最大接收器
外形圖下載
I0.25X135N16
0.25
138
8.00
0.020
0.017
6.3
0.37
40.5
26.5
0.0
16
16
C
1/2.5'
I0.25X135N16
I0.25X150NM
0.25
150
0.05
0.015
0.022
8.3
0.03
79.5
3.5
62.0
M15X0.5
18/16
C
1/2'
I0.25X150NM
I0.25X550N18
0.25
550
21.33
0.008
0.045
16.7
0.24
66.0
6.5
45.5
16
18
C
1/2'
I0.25X550N18
I0.26X64NM18
0.26
64
9.62
0.016
0.021
8.1
0.90
37.0
3.5
19.5
M15X0.5
18
C
1/2'
I0.26X64NM18
I0.26X105N16
0.26
105
12.82
0.012
0.028
10.8
0.14
40.5
26.5
0.0
16
16
C
1/2'
I0.26X105N16
J0.27X75NM22
0.27
73
7.80
0.019
0.018
7.1
1.80
26.2
4.0
17.2
M20X0.75
22
C
1/1.8'
J0.27X75NM22
I0.3X450NM
0.28
450
15.87
0.009
0.037
15.6
0.25
79.5
3.5
62.0
M15X0.5
18/16
C
1/2'
I0.3X450NM
I0.3X65N16
0.30
65
6.67
0.020
0.017
7.5
0.01
40.5
26.5
0.0
16
16
C
1/2'
I0.3X65N16
J0.3X66NM22
0.30
66
6.67
0.020
0.017
7.5
1.00
26.2
4.0
17.2
M20X0.75
22
C
1/2.5'
J0.3X66NM22
I0.3X68NM
0.30
68
9.52
0.014
0.024
10.7
0.05
79.5
3.5
62.0
M15X0.5
18/16
C
1/2'
I0.3X68NM
I0.3X70N18
0.30
70
8.33
0.016
0.021
9.4
0.11
85.5
26.0
45.5
18
18
C
1/3'
I0.3X70N18
I0.3X70NM
0.30
70
8.33
0.016
0.021
9.4
0.50
52.0
3.5
34.5
M15X0.5
18/16
C
1/2'
I0.3X70NM
I0.3X98N16
0.30
98
10.26
0.013
0.026
11.5
0.41
40.5
26.5
0.0
16
16
C
1/2'
I0.3X98N16
I0.3X100N
0.30
100
9.52
0.014
0.024
10.7
0.40
56.5
14.5
28.0
16
18/16
C
1/2'
I0.3X100N
I0.3X100N
0.30
102
5.80
0.023
0.015
6.5
0.52
56.5
14.5
28.0
16
18/16
C
1/2'
I0.3X100N
J0.3X110N16
0.30
108
6.67
0.020
0.017
7.5
0.40
43.3
38.3
0.0
16
16
C
1/2'
J0.3X110N16
I0.3X110NM
0.30
110
5.80
0.023
0.015
6.5
0.52
45.5
3.5
28.0
M15X0.5
18/16
C
1/2'
I0.3X110NM
I0.3X110NM
0.30
110
7.02
0.019
0.018
7.9
0.50
45.5
3.5
28.0
M15X0.5
18/16
C
1/2'
I0.3X110NM
I0.3X110NM
0.30
110
11.11
0.012
0.028
12.5
0.50
45.5
3.5
28.0
M15X0.5
18/16
C
1/2'
I0.3X110NM
I0.3X120N16
0.30
118
5.80
0.023
0.015
6.5
0.30
40.5
26.5
0.0
16
16
C
1/2.5'
I0.3X120N16
I0.3X120N16
0.30
118
11.11
0.012
0.028
12.5
0.30
40.5
26.5
0.0
16
16
C
1/2'
I0.3X120N16
I0.3X130NM
0.30
130
9.52
0.014
0.024
10.7
0.15
61.3
3.5
43.8
M15X0.5
18/16
C
1/3'
I0.3X130NM
I0.3X180N16
0.30
180
10.26
0.013
0.026
11.5
0.90
40.5
26.5
0.0
16
16
C
1/2'
I0.3X180N16
I0.3X187N
0.30
187
7.02
0.019
0.018
7.9
0.12
56.5
14.5
28.0
16
18/16
C
1/2'
I0.3X187N
I0.3X190N
0.30
197
6.67
0.020
0.017
7.5
0.20
56.5
14.5
28.0
16
18/16
C
2/3'
I0.3X190N
I0.3X197NM
0.30
197
7.02
0.019
0.018
7.9
0.12
45.5
3.5
28.0
M15X0.5
18/16
C
1/2'
I0.3X197NM
I0.3X200N
0.30
200
9.52
0.014
0.024
10.7
0.13
56.5
14.5
28.0
16
18/16
C
1/2'
I0.3X200N
I0.3X210NM
0.30
210
4.94
0.027
0.012
5.6
0.15
79.5
3.5
62.0
M15X0.5
18/16
C
2/3'
I0.3X210NM
I0.3X230NM
0.30
230
11.11
0.012
0.028
12.5
0.15
61.3
3.5
43.8
M15X0.5
18/16
C
2/3'
I0.3X230NM
I0.3X270N16
0.30
270
11.11
0.012
0.028
12.5
0.45
40.5
26.5
0.0
16
16
C
1/2'
I0.3X270N16
J0.3X280N16
0.30
280
9.80
0.014
0.025
11.0
0.15
70.5
21.5
44.0
16
16
C
1/2"
J0.3X280N16
I0.3X300NM
0.30
300
10.26
0.013
0.026
11.5
0.20
61.3
3.5
43.8
M15X0.5
18/16
C
1/2'
I0.3X300NM
I0.3X420N
0.30
420
13.33
0.010
0.034
15.0
0.30
63.0
14.5
34.5
16
18/16
C
1/2'
I0.3X420N
J0.3X500N16
0.30
500
13.33
0.010
0.034
15.0
0.10
70.5
21.5
44.0
16
16
C
1/2'
J0.3X500N16
I0.3X500N
0.30
500
16.67
0.008
0.042
18.8
0.30
74.5
6.5
54.0
16
18/16
C
1/2'
I0.3X500N
型號
倍數
工作距
景深
數值孔徑
分辨率
孔徑F#
畸變%
鏡身L0
L1
L2
d1
d2
接口
最大接收器
外形圖下載
I0.3X550N18
0.30
550
14.81
0.009
0.037
16.7
0.23
76.5
21.5
41.0
18
18
C
1/2'
I0.3X550N18
I0.3X580N18
0.30
580
14.81
0.009
0.037
16.7
0.21
81.0
21.5
45.5
18
18
C
1/2'
I0.3X580N18
I0.3X650N
0.30
650
19.05
0.007
0.048
21.4
0.01
89.5
21.5
54.0
18/16
18/16
C
1/2'
I0.3X650N
J0.3X160N16
0.32
160
6.25
0.020
0.017
8.0
0.18
82.5
33.5
44.0
16
16
C
1/2'
J0.3X160N16
I0.3X60N16
0.35
60
7.62
0.015
0.022
11.7
0.27
40.5
26.5
0.0
16
16
C
1/2'
I0.3X60N16
I0.35X93NM
0.35
93
5.71
0.020
0.017
8.8
0.33
52.0
3.5
34.5
M15X0.5
18/16
C
1/2'
I0.35X93NM
J0.35X95N22
0.35
95
4.57
0.025
0.013
7.0
0.35
87.0
35.0
47.0
22
22
C
2/3'
J0.35X95N22
J0.35X96N16
0.35
96
4.57
0.025
0.013
7.0
0.35
49.0
44.0
0.0
16
16
C
1/3'
J0.35X96N16
J0.37X92N16
0.37
92
5.41
0.020
0.017
9.3
0.40
49.0
44.0
0.0
16
16
C
1/2'
J0.37X92N16
I0.4X40N
0.40
40
5.56
0.018
0.019
11.1
0.10
83.8
26.0
43.8
18/16
18/16
C
1/2'
I0.4X40N
I0.4X50N
0.40
50
5.88
0.017
0.020
11.8
0.13
83.8
26.0
43.8
18/16
18/16
C
1/2'
I0.4X50N
J0.4X65N16
0.40
65
5.00
0.020
0.017
10.0
0.28
70.5
21.5
44.0
16
16
C
1/2"
J0.4X65N16
I0.4X68N
0.40
68
5.00
0.020
0.017
10.0
0.15
68.0
26.0
28.0
18/16
18/16
C
1/2'
I0.4X68N
I0.4X78N16
0.40
78
5.88
0.017
0.020
11.8
0.37
40.5
26.5
0.0
16
16
C
1/2'
I0.4X78N16
I0.4X80N
0.40
79
3.57
0.028
0.012
7.1
0.43
56.5
14.5
28.0
16
18/16
C
1/2'
I0.4X80N
I0.4X80N
0.40
79
5.00
0.020
0.017
10.0
0.43
56.5
14.5
28.0
16
18/16
C
1/2'
I0.4X80N
I0.4X90NM
0.40
90
3.57
0.028
0.012
7.1
0.43
45.5
3.5
28.0
M15X0.5
18/16
C
1/2'
I0.4X90NM
I0.4X95N16
0.40
95
3.57
0.028
0.012
7.1
0.25
40.5
26.5
0.0
16
16
C
1/2.5'
I0.4X95N16
I0.4X95N16
0.40
95
4.55
0.022
0.015
9.1
0.40
40.5
26.5
0.0
16
16
C
1/2'
I0.4X95N16
I0.4X109N
0.40
109
4.76
0.021
0.016
9.5
0.10
81.0
6.5
60.5
16
18/16
C
1/2'
I0.4X109N
I0.4X110N18
0.40
110
7.14
0.014
0.024
14.3
0.40
102.1
6.5
81.6
16
18
C
2/3'
I0.4X110N18
J0.4X125NM22
0.40
124
3.70
0.027
0.012
7.4
0.07
46.5
4.0
37.5
M20X0.75
22
C
2/3'
J0.4X125NM22
I0.4X140N
0.40
140
5.88
0.017
0.020
11.8
0.18
74.5
26.0
34.5
18/16
18/16
C
1/2'
I0.4X140N
J0.4X160N16
0.40
160
5.88
0.017
0.020
11.8
0.41
55.5
6.5
44.0
16
16
C
1/2.5'
J0.4X160N16
I0.4X163NM
0.40
163
5.88
0.017
0.020
11.8
0.41
52.0
3.5
34.5
M15X0.5
18/16
C
1/2.5'
I0.4X163NM
I0.4X185N16
0.40
185
4.76
0.021
0.016
9.5
0.31
40.5
26.5
0.0
16
16
C
1/2'
I0.4X185N16
I0.4X300N18
0.40
300
7.69
0.013
0.026
15.4
0.40
59.8
21.5
24.3
18
18
C
1/2'
I0.4X300N18
I0.4X400N18
0.40
400
6.25
0.016
0.021
12.5
0.20
75.5
1.1
60.4
17
18
C
1/2'
I0.4X400N18
I0.45X110N16
0.45
110
4.44
0.020
0.017
11.3
0.47
40.5
26.5
0.0
16
16
C
1/2'
I0.45X110N16
I0.47X430N
0.47
430
8.51
0.010
0.034
23.5
0.08
74.5
26.0
34.5
18/16
18/16
C
1/2'
I0.47X430N
I0.5X85N16
0.48
85
4.63
0.018
0.019
13.3
0.53
40.5
26.5
0.0
16
16
C
1/2'
I0.5X85N16
I0.48X308N
0.48
308
6.25
0.013
0.025
18.0
0.08
69.1
27.1
28.0
18/16
18/16
C
1/2'
I0.48X308N
J0.5X40N16
0.50
40
2.58
0.031
0.011
8.1
0.09
37.0
3.5
28.5
M15X0.5
16
C
1/2'
J0.5X40N16
I0.5X40N16
0.50
40
2.67
0.030
0.011
8.3
0.12
40.5
26.5
0.0
16
16
C
1/2.5'
I0.5X40N16
I0.5X40N
0.50
40
4.21
0.019
0.018
13.2
0.12
83.8
26.0
43.8
18/16
18/16
C
1/2'
I0.5X40N
型號
倍數
工作距
景深
數值孔徑
分辨率
孔徑F#
畸變%
鏡身L0
L1
L2
d1
d2
接口
最大接收器
外形圖下載
I0.5X48N16
0.50
48
2.86
0.028
0.012
8.9
0.12
40.5
26.5
0.0
16
16
C
1/2'
I0.5X48N16
J0.5X49N16
0.50
49
3.81
0.021
0.016
11.9
0.10
23.0
18.0
0.0
18/16
18/16
C
1/2.5'
J0.5X49N16
I0.5X50N
0.50
50
2.50
0.032
0.010
7.8
0.36
74.5
26.0
34.5
18/16
18/16
C
1/2'
I0.5X50N
I0.5X50N
0.50
50
4.21
0.019
0.018
13.2
0.36
74.5
26.0
34.5
18/16
18/16
C
1/2'
I0.5X50N
I0.5X52N
0.50
52
3.81
0.021
0.016
11.9
0.01
56.5
14.5
28.0
16
18/16
C
1/2.5'
I0.5X52N
I0.5X60N
0.50
60
3.20
0.025
0.013
10.0
0.01
56.5
14.5
28.0
16
18/16
C
1/2'
I0.5X60N
I0.5X65NM
0.50
65
2.50
0.032
0.010
7.8
0.36
61.3
3.5
43.8
M15X0.5
18/16
C
1/2'
I0.5X65NM
J0.5X65N16
0.50
65
2.50
0.032
0.010
7.8
0.10
59.5
26.0
28.5
16
16
C
1/2'
J0.5X65N16
I0.5X66N16
0.50
66
4.00
0.020
0.017
12.5
0.34
40.5
26.5
0.0
16
16
C
1/2'
I0.5X66N16
I0.5X68N
0.50
68
2.50
0.032
0.010
7.8
0.36
56.5
14.5
28.0
16
18/16
C
1/2'
I0.5X68N
I0.5X70NM
0.50
70
4.00
0.020
0.017
12.5
0.33
52.0
3.5
34.5
M15X0.5
18/16
C
1/2'
I0.5X70NM
I0.5X71N18
0.50
71
2.76
0.029
0.012
8.6
0.10
81.0
21.5
45.5
18
18
C
1/2'
I0.5X71N18
J0.5X75N16
0.50
75
2.67
0.030
0.011
8.3
0.18
70.5
21.5
44.0
16
16
C
1/2.3'
J0.5X75N16
I0.5X78NM
0.50
78
2.50
0.032
0.010
7.8
0.36
45.5
3.5
28.0
M15X0.5
18/16
C
1/2'
I0.5X78NM
I0.5X82N16
0.50
82
2.50
0.032
0.010
7.8
0.21
40.5
26.5
0.0
16
16
C
1/2.5'
I0.5X82N16
I0.5X95NM18
0.50
95
4.44
0.018
0.019
13.9
0.33
29.8
3.5
12.3
M15X0.5
18
C
1/2'
I0.5X95NM18
I0.5X100N
0.50
100
3.48
0.023
0.015
10.9
0.17
56.5
14.5
28.0
16
18/16
C
1/2'
I0.5X100N
J0.5X104NM22
0.50
104
2.50
0.032
0.010
7.8
0.07
51.5
4.0
42.5
M20X0.75
22
C
1'
J0.5X104NM22
I0.5X110N
0.50
110
2.86
0.028
0.012
8.9
0.10
83.8
26.0
43.8
18/16
18/16
C
1/2'
I0.5X110N
I0.5X110N22
0.50
110
3.20
0.025
0.013
10.0
0.14
82.5
35.0
42.5
22
22
C
1/2'
I0.5X110N22
I0.5X110N
0.50
110
4.00
0.020
0.017
12.5
0.10
83.8
26.0
43.8
18/16
18/16
C
1/2'
I0.5X110N
I0.5X110N18
0.50
110
5.00
0.016
0.021
15.6
0.37
84.1
14.5
55.6
16
18
C
2/3'
I0.5X110N18
I0.5X113NM
0.50
113
3.48
0.023
0.015
10.9
0.37
79.5
3.5
62.0
M15X0.5
18/16
C
1/2'
I0.5X113NM
I0.5X120N16
0.50
120
3.33
0.024
0.014
10.4
0.60
40.5
26.5
0.0
16
16
C
1/2'
I0.5X120N16
I0.5X120N16
0.50
120
5.71
0.014
0.024
17.9
0.60
40.5
26.5
0.0
16
16
C
1/2'
I0.5X120N16
I0.5X125NM22
0.50
125
4.00
0.020
0.017
12.5
0.65
72.5
4.0
63.5
M20X0.75
22
C
2/3'
I0.5X125NM22
J0.5X126N16
0.50
126
4.21
0.019
0.018
13.2
0.11
70.5
21.5
44.0
16
16
C
1/1.8'
J0.5X126N16
I0.5X132NM
0.50
132
2.67
0.030
0.011
8.3
0.01
61.3
3.5
43.8
M15X0.5
18/16
C
1/2'
I0.5X132NM
I0.5X133N18
0.50
133
2.67
0.030
0.011
8.3
0.01
59.5
26.0
19.5
18
18
C
1/2'
I0.5X133N18
I0.5X135N
0.50
135
4.00
0.020
0.017
12.5
0.20
56.5
14.5
28.0
16
18/16
C
1/2'
I0.5X135N
I0.5X137NM
0.50
137
2.67
0.030
0.011
8.3
0.02
61.3
3.5
43.8
M15X0.5
18/16
C
1/2'
I0.5X137NM
I0.5X150NM
0.50
150
6.67
0.012
0.028
20.8
0.31
52.0
3.5
34.5
M15X0.5
18/16
C
1/2'
I0.5X150NM
J0.5X155N16
0.50
155
6.67
0.012
0.028
20.8
0.34
49.0
44.0
0.0
16
16
C
1/2'
J0.5X155N16
I0.5X155N18
0.50
156
6.67
0.012
0.028
20.8
0.34
48.0
14.5
19.5
16
18
C
1/2'
I0.5X155N18
I0.5X160NM
0.50
160
3.20
0.025
0.013
10.0
0.00
79.5
3.5
62.0
M15X0.5
18/16
C
1/2'
I0.5X160NM
型號
倍數
工作距
景深
數值孔徑
分辨率
孔徑F#
畸變%
鏡身L0
L1
L2
d1
d2
接口
最大接收器
外形圖下載
I0.5X175N18
0.50
175
3.20
0.025
0.013
10.0
0.01
86.3
34.0
38.3
16
18
C
1/2'
I0.5X175N18
I0.5X185NM
0.50
180
3.64
0.022
0.015
11.4
0.35
45.5
3.5
28.0
M15X0.5
18/16
C
1/2'
I0.5X185NM
J0.5X180N16
0.50
180
3.64
0.022
0.015
11.4
0.01
82.5
33.5
44.0
16
16
C
1/2'
J0.5X180N16
I0.5X185N
0.50
185
3.20
0.025
0.013
10.0
0.20
56.5
14.5
28.0
16
18/16
C
1/2'
I0.5X185N
J0.5X200N16
0.50
200
3.48
0.023
0.015
10.9
0.16
70.5
21.5
44.0
16
16
C
1/3'
J0.5X200N16
I0.5X200N
0.50
200
5.33
0.015
0.022
16.7
0.30
56.5
14.5
28.0
16
18/16
C
1/2'
I0.5X200N
I0.5X205N18
0.50
205
4.21
0.019
0.018
13.2
0.40
59.8
21.5
24.3
18
18
C
1/3'
I0.5X205N18
I0.5X205NM
0.50
205
4.21
0.019
0.018
13.2
0.28
61.3
3.5
43.8
M15X0.5
18/16
C
1/2'
I0.5X205NM
J0.5X250N16
0.50
250
3.48
0.023
0.015
10.9
0.40
60.0
34.0
21.0
16
16
C
1/2'
J0.5X250N16
I0.5X260NM
0.50
260
5.33
0.015
0.022
16.7
0.40
61.3
3.5
43.8
M15X0.5
18/16
C
2/3'
I0.5X260NM
I0.5X300N
0.50
297
6.00
0.013
0.025
18.8
0.08
69.1
27.1
28.0
18/16
18/16
C
1/2'
I0.5X300N
I0.5X320N
0.50
320
6.00
0.013
0.025
18.8
0.08
74.5
6.5
54.0
16
18/16
C
1/2'
I0.5X320N
I0.5X350N16
0.50
350
7.27
0.011
0.031
22.7
0.10
74.5
6.5
54.0
16
16
C
1/2'
I0.5X350N
I0.5X350N18
0.50
350
7.27
0.011
0.031
22.7
0.08
74.5
26.0
34.5
18
18
C
1/2'
I0.5X350N
I0.5X400N
0.50
400
8.00
0.010
0.034
25.0
0.08
74.5
26.0
34.5
18/16
18/16
C
1/2'
I0.5X400N
I0.5X400NM
0.50
400
8.00
0.010
0.034
25.0
0.09
79.5
3.5
62.0
M15X0.5
18/16
C
1/2'
I0.5X400NM
I0.5X500N20
0.50
500
4.44
0.018
0.019
13.9
0.20
111.0
36.5
60.5
20
18/16
C
1/2'
I0.5X500N20
I0.5X560N18
0.50
560
11.43
0.007
0.048
35.7
0.08
117.1
21.5
81.6
18
18
C
1/2'
I0.5X560N18
I0.5X730N18
0.50
730
13.33
0.006
0.056
41.7
0.03
117.1
21.5
81.6
18
18
C
1/2'
I0.5X730N18
I0.5X750N20
0.50
750
8.00
0.010
0.034
25.0
0.09
120.4
36.6
69.8
20
18/16
C
1/2'
I0.5X750N20
I0.5X133N
0.52
133
2.56
0.030
0.011
8.7
0.01
56.5
14.5
28.0
16
18/16
C
1/2'
I0.5X133N
I0.5X180N
0.52
180
3.50
0.022
0.015
11.8
0.20
56.5
14.5
28.0
16
18/16
C
1/2'
I0.5X180N
J0.52X200N16
0.52
200
2.85
0.027
0.012
9.6
0.14
60.0
34.0
26.0
16
16
C
1/2'
J0.52X200N16
I0.54X30.5N
0.54
31
3.70
0.020
0.017
13.5
0.30
89.5
21.5
54.0
18/16
18/16
C
1/2'
I0.54X30.5N
J0.55X130N16
0.55
131
2.51
0.029
0.012
9.5
0.45
59.5
33.5
21.0
16
16
C
1/2'
J0.55X130N16
I0.6X30NM18
0.60
30
2.67
0.025
0.013
12.0
0.20
29.8
3.5
12.3
M15X0.5
18
C
1/2'
I0.6X30NM18
I0.6X60N
0.60
59
1.85
0.036
0.009
8.3
0.30
56.5
14.5
28.0
16
18/16
C
1/2'
I0.6X60N
I0.6X65NM
0.60
65
1.90
0.035
0.010
8.6
0.30
52.0
3.5
34.5
M15X0.5
18/16
C
1/2'
I0.6X65NM
J0.6X65N16
0.60
65
2.67
0.025
0.013
12.0
0.40
83.0
34.0
44.0
16
16
C
1/2'
J0.6X65N16
J0.6X67N16
0.60
67
2.47
0.027
0.012
11.1
0.30
49.0
44.0
0.0
16
16
C
1/2.5'
J0.6X67N16
I0.6X70NM
0.60
70
1.85
0.036
0.009
8.3
0.30
45.5
3.5
28.0
M15X0.5
18/16
C
1/2'
I0.6X70NM
I0.6X75N16
0.60
75
1.90
0.035
0.010
8.6
0.18
40.5
26.5
0.0
16
16
C
1/2.5'
I0.6X75N16
J0.6X83NM22
0.60
83
1.80
0.037
0.009
8.1
0.06
63.5
4.0
54.5
M20X0.75
22
C
1/3'
J0.6X83NM22
I0.6X86N
0.60
86
1.85
0.036
0.009
8.3
0.01
96.0
21.5
60.5
18/16
18/16
C
1/2'
I0.6X86N
I0.6X90N
0.60
90
2.08
0.032
0.010
9.4
0.01
96.0
21.5
60.5
18/16
18/16
C
1/2'
I0.6X90N
型號
倍數
工作距
景深
數值孔徑
分辨率
孔徑F#
畸變%
鏡身L0
L1
L2
d1
d2
接口
最大接收器
外形圖下載
I0.6X91N
0.60
91
1.96
0.034
0.010
8.8
0.02
89.5
21.5
54.0
18/16
18/16
C
1/2.5'
I0.6X91N
I0.6X110N16
0.60
110
2.67
0.025
0.013
12.0
0.90
40.5
26.5
0.0
16
16
C
1/2'
I0.6X110N16
I0.6X117N
0.60
117
2.56
0.026
0.013
11.5
0.23
68.0
26.0
28.0
18/16
18/16
C
1/2'
I0.6X117N
I0.6X120NM
0.60
120
3.70
0.018
0.019
16.7
0.10
61.3
3.5
43.8
M15X0.5
18/16
C
1/2'
I0.6X120NM
I0.6X125NM
0.60
125
2.90
0.023
0.015
13.0
0.50
45.5
3.5
28.0
M15X0.5
18/16
C
1/2'
I0.6X125NM
I0.6X126NM
0.60
126
3.51
0.019
0.018
15.8
0.48
61.3
3.5
43.8
M15X0.5
18/16
C
1/1.8'
I0.6X126NM
I0.6X140NM
0.60
140
3.70
0.018
0.019
16.7
0.40
45.5
3.5
28.0
M15X0.5
18/16
C
1/2.5'
I0.6X140NM
I0.6X150N
0.60
150
3.51
0.019
0.018
15.8
0.34
56.5
14.5
28.0
16
18/16
C
1/2'
I0.6X150N
I0.6X195NM
0.60
195
3.33
0.020
0.017
15.0
0.20
61.3
3.5
43.8
M15X0.5
18/16
C
1/2'
I0.6X195NM
I0.6X205NM
0.60
205
3.33
0.020
0.017
15.0
0.43
79.5
3.5
62.0
M15X0.5
18/16
C
1/2'
I0.6X205NM
I0.6X230NM
0.60
230
3.92
0.017
0.020
17.6
0.56
79.5
3.5
62.0
M15X0.5
18/16
C
1/2'
I0.6X230NM
I0.65X70N18
0.65
70
1.76
0.035
0.010
9.3
0.10
81.0
21.5
45.5
18
18
C
1/2'
I0.65X70N18
I0.65X92N
0.65
92
2.46
0.025
0.013
13.0
0.65
56.5
14.5
28.0
16
18/16
C
1/2'
I0.65X92N
I0.65X93N
0.65
93
2.28
0.027
0.012
12.0
0.17
89.5
21.5
54.0
18/16
18/16
C
1/2.5'
I0.65X93N
I0.66X285NM18
0.66
285
4.66
0.013
0.026
25.4
0.08
88.1
3.5
70.6
M15X0.5
18
C
1/2'
I0.66X285NM18
I0.66X400NM18
0.66
400
6.06
0.010
0.034
33.0
0.13
88.1
3.5
70.6
M15X0.5
18
C
2/3'
I0.66X400NM18
I0.7X55N
0.70
55
1.43
0.040
0.008
8.8
0.20
56.5
14.5
28.0
16
18/16
C
1/2'
I0.7X55N
I0.7X60N16
0.70
60
2.29
0.025
0.013
14.0
0.20
40.5
26.5
0.0
16
16
C
1/2'
I0.7X60N16
I0.7X60N16
0.70
60
3.46
0.017
0.020
21.2
0.20
40.5
26.5
0.0
16
16
C
1/2'
I0.7X60N16
I0.7X66NM
0.70
66
1.47
0.039
0.009
9.0
0.26
45.5
3.5
28.0
M15X0.5
18/16
C
1/2'
I0.7X66NM
I0.7X68N18
0.70
68
1.90
0.030
0.011
11.7
0.03
48.0
14.5
19.5
16
18
C
1/2'
I0.7X68N18
I0.7X71N16
0.70
71
1.50
0.038
0.009
9.2
0.15
40.5
26.5
0.0
16
16
C
1/2.5'
I0.7X71N16
I0.7X76N
0.70
76
2.12
0.027
0.012
13.0
0.10
63.0
14.5
34.5
16
18/16
C
1/2'
I0.7X76N
J0.7X106N16
0.70
106
1.84
0.031
0.011
11.3
0.40
59.5
33.5
21.0
16
16
C
1/2'
J0.7X106N16
J0.7X108N16
0.70
108
1.47
0.039
0.009
9.0
0.10
70.5
21.5
44.0
16
16
C
1/2'
J0.7X108N16
J0.7X100N16
0.70
108
1.84
0.031
0.011
11.3
0.10
70.5
21.5
44.0
16
16
C
1/3'
J0.7X100N16
I0.7X110N18
0.70
109
1.56
0.037
0.009
9.5
0.01
66.0
6.5
45.5
16
18
C
1/2'
I0.7X110N18
I0.7X128N18
0.70
128
1.90
0.030
0.011
11.7
0.01
81.0
21.5
45.5
18
18
C
1/2'
I0.7X128N18
I0.7X250N18
0.70
251
2.60
0.022
0.015
15.9
0.20
81.0
21.5
45.5
18
18
C
1/2'
I0.7X250N18
I0.7X370N
0.70
372
3.81
0.015
0.022
23.3
0.06
89.5
21.5
54.0
18/16
18/16
C
1/2'
I0.7X370N
I0.7X410N
0.70
412
4.40
0.013
0.026
26.9
0.05
96.0
21.5
60.5
18/16
18/16
C
1/2'
I0.7X410N
J0.7X110N16
0.71
110
1.88
0.030
0.011
11.8
0.23
64.8
21.5
38.3
16
16
C
1/2'
J0.7X110N16
J0.73X520N26
0.73
520
3.41
0.016
0.021
22.9
0.20
145.0
41.0
104.0
26
22
C
1/2"
J0.73X520N26
I0.75X70N16
0.75
70
1.33
0.040
0.008
9.4
0.25
40.5
26.5
0.0
16
16
C
1/2'
I0.75X70N16
I0.75X110N16
0.75
110
1.52
0.035
0.010
10.7
0.32
40.5
26.5
0.0
16
16
C
1/2'
I0.75X110N16
型號
倍數
工作距
景深
數值孔徑
分辨率
孔徑F#
畸變%
鏡身L0
L1
L2
d1
d2
接口
最大接收器
外形圖下載
I0.8X30NM18
0.80
30
1.16
0.043
0.008
9.3
0.02
29.8
3.5
12.3
M15X0.5
18
C
1/2'
I0.8X30NM18
I0.8X35N16
0.80
35
1.39
0.036
0.009
11.1
0.11
40.5
26.5
0.0
16
16
C
1/2'
I0.8X35N16
I0.8X52N
0.80
52
1.19
0.042
0.008
9.5
0.22
56.5
14.5
28.0
16
18/16
C
1/2'
I0.8X52N
I0.8X63NM
0.80
63
1.19
0.042
0.008
9.5
0.22
45.5
3.5
28.0
M15X0.5
18/16
C
1/2'
I0.8X63NM
I0.8X68N16
0.80
68
1.52
0.033
0.010
12.1
0.20
40.5
26.5
0.0
16
16
C
1/2'
I0.8X68N16
I0.8X70N
0.80
70
1.52
0.033
0.010
12.1
0.14
105.3
21.5
69.8
18/16
18/16
C
1/2'
I0.8X70N
I0.8X70N
0.80
70
1.52
0.033
0.010
12.1
0.14
105.3
21.5
69.8
18/16
18/16
C
1/2'
I0.8X70N
I0.8X85NM
0.80
85
1.32
0.038
0.009
10.5
0.50
61.3
3.5
43.8
M15X0.5
18/16
C
1/2'
I0.8X85NM
I0.8X85NM
0.80
85
1.72
0.029
0.012
13.8
0.50
61.3
3.5
43.8
M15X0.5
18/16
C
1/2'
I0.8X85NM
I0.8X90NM
0.80
90
1.67
0.030
0.011
13.3
0.60
45.5
3.5
28.0
M15X0.5
18/16
C
1/2'
I0.8X90NM
I0.8X92N
0.80
92
1.22
0.041
0.008
9.8
0.02
81.0
6.5
60.5
16
18/16
C
1/2'
I0.8X92N
I0.8X98N
0.80
98
1.00
0.050
0.007
8.0
0.02
74.5
26.0
34.5
18/16
18/16
C
1/2'
I0.8X98N
I0.8X100N
0.80
100
1.29
0.039
0.009
10.3
0.18
74.5
26.0
34.5
18/16
18/16
C
1/2'
I0.8X100N
I0.8X102N
0.80
103
1.29
0.039
0.009
10.3
0.18
69.1
27.1
28.0
18/16
18/16
C
1/2'
I0.8X102N
I0.8X105N16
0.80
105
1.14
0.044
0.008
9.1
0.19
70.6
22.1
34.5
16
16
C
1/2'
I0.8X105N16
I0.8X110N
0.80
110
2.27
0.022
0.015
18.2
0.40
56.5
14.5
28.0
16
18/16
C
2/3'
I0.8X110N
I0.8X120NM
0.80
120
1.67
0.030
0.011
13.3
0.40
79.5
3.5
62.0
M15X0.5
18/16
C
1/2'
I0.8X120NM
I0.8X130NM
0.80
130
2.17
0.023
0.015
17.4
0.27
61.3
3.5
43.8
M15X0.5
18/16
C
1/2'
I0.8X130NM
I0.8X135N18
0.80
135
1.67
0.030
0.011
13.3
0.20
66.0
6.5
45.5
16
18
C
1/2'
I0.8X135N18
I0.8X150N
0.80
150
2.00
0.025
0.013
16.0
0.30
63.0
14.5
34.5
16
18/16
C
1/2'
I0.8X150N
I0.8X160N
0.80
160
2.00
0.025
0.013
16.0
0.26
74.5
26.0
34.5
18/16
18/16
C
1/2'
I0.8X160N
I0.8X190N18
0.80
190
1.72
0.029
0.012
13.8
0.10
86.3
34.0
38.3
16
18
C
1/2'
I0.8X190N18
I0.8X200N18
0.80
200
2.17
0.023
0.015
17.4
0.60
81.0
21.5
45.5
18
18
C
1/2'
I0.8X200N18
I0.8X215N18
0.80
215
2.00
0.025
0.013
16.0
0.07
86.3
34.0
38.3
16
18
C
1/2'
I0.8X215N18
I0.8X285NM18
0.80
285
3.57
0.014
0.024
28.6
0.10
81.6
3.5
64.1
M15X0.5
18
C
1/2'
I0.8X285NM18
I0.8X300N
0.80
300
3.33
0.015
0.022
26.7
0.07
84.9
27.1
43.8
18/16
18/16
C
1/2'
I0.8X300N
I0.8X335N18
0.80
335
3.13
0.016
0.021
25.0
0.06
93.5
34.0
45.5
16
18
C
1/2'
I0.8X335N18
I0.9X51N
0.90
51
1.01
0.044
0.008
10.2
0.20
56.5
14.5
28.0
16
18/16
C
1/2'
I0.9X51N
I0.9X62NM
0.90
62
1.01
0.044
0.008
10.2
0.20
45.5
3.5
28.0
M15X0.5
18/16
C
1/2'
I0.9X62NM
I0.9X105N
0.90
105
1.48
0.030
0.011
15.0
0.25
56.5
14.5
28.0
16
18/16
C
1/2'
I0.9X105N
I0.9X115N
0.90
115
1.27
0.035
0.010
12.9
0.02
89.5
21.5
54.0
18/16
18/16
C
2/3'
I0.9X115N
I0.9X220N
0.90
220
1.78
0.025
0.013
18.0
0.30
89.5
21.5
54.0
18/16
18/16
C
1/2'
I0.9X220N
I1X29NM18
1.00
29
1.18
0.034
0.010
14.7
0.01
32.5
3.5
15.0
M15X0.5
18
C
1/2'
I1X29NM18
J1X29NM18
1.00
29
1.18
0.034
0.010
14.7
0.01
32.5
3.5
24.0
M15X0.5
18
C
1/2'
J1X29NM18
I1X45N
1.00
45
0.89
0.045
0.007
11.1
0.33
63.0
14.5
34.5
16
18/16
C
1/2'
I1X45N
型號
倍數
工作距
景深
數值孔徑
分辨率
孔徑F#
畸變%
鏡身L0
L1
L2
d1
d2
接口
最大接收器
外形圖下載
I1X50N18
1.00
48
1.08
0.037
0.009
13.5
0.15
59.5
26.0
19.5
18
18
C
1/2'
I1X50N18
I1X51N
1.00
51
0.87
0.046
0.007
10.9
0.17
56.5
14.5
28.0
16
18/16
C
1/2'
I1X51N
I1X56NM
1.00
56
0.89
0.045
0.007
11.1
0.33
52.0
3.5
34.5
M15X0.5
18/16
C
1/2'
I1X56NM
I1X59N
1.00
59
1.18
0.034
0.010
14.7
0.33
56.5
14.5
28.0
16
18/16
C
1/2'
I1X59N
J1X60N16
1.00
60
1.08
0.037
0.009
13.5
0.16
49.0
44.0
0.0
16
16
C
1/2'
J1X60N16
I1X60N18
1.00
61
0.85
0.047
0.007
10.6
0.17
48.0
14.5
19.5
16
18
C
1/2'
I1X60N18
I1X60N18
1.00
61
1.08
0.037
0.009
13.5
0.36
48.0
14.5
19.5
16
18
C
1/2'
I1X60N18
I1X62NM
1.00
62
0.71
0.056
0.006
8.9
0.02
45.5
3.5
28.0
M15X0.5
18/16
C
1/2'
I1X62NM
I1X62NM
1.00
62
0.71
0.056
0.006
8.9
0.02
45.5
3.5
28.0
M15X0.5
18/16
C
1/2'
I1X62NM
J1X64N22
1.00
64
0.95
0.042
0.008
11.9
0.02
108.5
35.0
68.5
22
22
C
2/3'
J1X64N22
I1X64N
1.00
64
1.33
0.030
0.011
16.7
0.03
72.3
14.5
43.8
16
18/16
C
1/2'
I1X64N
I1X65N
1.00
65
1.29
0.031
0.011
16.1
0.45
56.5
14.5
28.0
16
18/16
C
1/2'
I1X65N
I1X66NM
1.00
66
1.00
0.040
0.008
12.5
0.48
52.0
3.5
34.5
M15X0.5
18/16
C
1/2'
I1X66NM
J1X69N16
1.00
69
1.60
0.025
0.013
20.0
0.32
76.8
33.5
38.3
16
16
C
1/2'
J1X69N16
I1X71N18
1.00
71
1.60
0.025
0.013
20.0
0.29
81.0
21.5
45.5
18
18
C
1/2'
I1X71N18
I1X77NM
1.00
77
0.93
0.043
0.008
11.6
0.50
45.5
3.5
28.0
M15X0.5
18/16
C
1/2'
I1X77NM
I1X82N
1.00
82
1.14
0.035
0.010
14.3
0.30
63.0
14.5
34.5
16
18/16
C
1/2'
I1X82N
I1X82N
1.00
82
1.54
0.026
0.013
19.2
0.30
63.0
14.5
34.5
16
18/16
C
1/2'
I1X82N
I1X85NM
1.00
85
1.29
0.031
0.011
16.1
1.10
61.3
3.5
43.8
M15X0.5
18/16
C
2/3'
I1X85NM
I1X90N
1.00
90
0.80
0.050
0.007
10.0
0.01
81.0
6.5
60.5
16
18/16
C
1/2'
I1X90N
I1X95NM
1.00
95
1.48
0.027
0.012
18.5
0.91
61.3
3.5
43.8
M15X0.5
18/16
C
2/3'
I1X95NM
I1X95NM
1.00
95
2.22
0.018
0.019
27.8
0.91
61.3
3.5
43.8
M15X0.5
18/16
C
2/3'
I1X95NM
I1X98N
1.00
98
1.43
0.028
0.012
17.9
0.19
63.0
14.5
34.5
16
18/16
C
1/2'
I1X98N
I1X110N
1.00
108
0.80
0.050
0.007
10.0
0.01
96.0
21.5
60.5
18/16
18/16
C
1/2'
I1X110N
J1X108N22
1.00
108
0.98
0.041
0.008
12.2
0.02
103.5
22
C
1.1'
J0.2X212NM22
I1X110N
1.00
108
1.08
0.037
0.009
13.5
0.01
96.0
21.5
60.5
18/16
18/16
C
1/2'
I1X110N
J1X110N16
1.00
110
0.85
0.047
0.007
10.6
0.30
81.0
21.5
54.5
16
16
C
1/2'
J1X110N16
I1X110N
1.00
110
1.48
0.027
0.012
18.5
0.40
56.5
14.5
28.0
16
18/16
C
1/2'
I1X110N
J1X135N16
1.00
135
1.33
0.030
0.011
16.7
0.45
70.5
21.5
44.0
16
16
C
1/2'
J1X135N16
I1X146N18
1.00
146
1.00
0.036
0.009
13.9
0.24
86.3
34.0
38.3
16
18
C
1/2'
I1X146N18
I1X150N18
1.00
150
1.08
0.037
0.009
13.5
0.24
81.0
21.5
45.5
18
18
C
1/2'
I1X150N18
I1X150N18
1.00
150
1.50
0.027
0.013
18.8
0.24
81.0
21.5
45.5
18
18
C
1/2'
I1X150N18
I1X155N
1.00
155
1.60
0.025
0.013
20.0
0.20
96.0
21.5
60.5
18/16
18/16
C
1/2'
I1X155N
I1X168N18
1.00
168
1.00
0.032
0.010
15.6
0.24
86.3
34.0
38.3
16
18
C
1/2'
I1X168N18
I1X190N
1.00
190
1.40
0.029
0.012
17.5
0.20
105.3
21.5
69.8
18/16
18/16
C
1/2'
I1X190N
型號
倍數
工作距
景深
數值孔徑
分辨率
孔徑F#
畸變%
鏡身L0
L1
L2
d1
d2
接口
最大接收器
外形圖下載
I1X190NM18
1.00
190
1.90
0.021
0.016
23.8
0.20
88.1
3.5
70.6
M15X0.5
18
C
1/2'
I1X190NM18
I1X250N
1.00
250
1.82
0.022
0.015
22.7
0.10
105.3
21.5
69.8
18/16
18/16
C
2/3'
I1X250N
I1X280N16
1.00
289
2.35
0.017
0.020
29.4
0.01
117.8
34.0
69.8
16
16
C
1/2'
I1X280N16
I1X300N
1.00
300
2.22
0.018
0.019
27.8
0.05
96.0
21.5
60.5
18/16
18/16
C
2/3'
I1X300N
I1X300N18
1.00
300
3.64
0.011
0.031
45.5
0.05
99.1
14.5
70.6
16
18
C
1/2'
I1X300N18
J1X506N26
1.00
506
2.50
0.016
0.021
31.3
0.10
145.0
41.0
99.0
26
22
C
2/3'
J1X506N26
J1.2X24N16
1.20
24
0.56
0.060
0.006
10.0
1.67
37.0
3.5
28.5
M15X0.5
16
C
1/2.5'
J1.2X24N16
I1.2X52N
1.20
52
0.67
0.050
0.007
12.0
0.12
56.5
14.5
28.0
16
18/16
C
1/2'
I1.2X52N
I1.2X57N
1.20
57
0.67
0.050
0.007
12.0
0.22
56.5
14.5
28.0
16
18/16
CS
1/2'
I1.2X57N
I1.2X65N
1.20
65
0.83
0.040
0.008
15.0
0.47
56.5
14.5
28.0
16
18/16
C
1/2'
I1.2X65N
I1.2X65N
1.20
65
1.11
0.030
0.011
20.0
0.47
56.5
14.5
28.0
16
18/16
C
1/2'
I1.2X65N
I1.2X70N16
1.20
70
0.90
0.037
0.009
16.2
0.12
102.0
34.0
54.0
16
16
C
1/2'
I1.2X70N16
I1.2X82N
1.20
83
0.69
0.048
0.007
12.5
0.01
89.5
21.5
54.0
18/16
18/16
C
2/3'
I1.2X82N
I1.2X100N
1.20
100
0.71
0.047
0.007
12.8
0.18
105.3
21.5
69.8
18/16
18/16
C
1/2'
I1.2X100N
I1.2X100N
1.20
100
0.85
0.039
0.009
15.4
0.18
105.3
21.5
69.8
18/16
18/16
C
1/2'
I1.2X100N
I1.2X110N20
1.20
110
0.56
0.060
0.006
10.0
0.20
120.9
37.1
69.8
20
18/16
C
2/3'
I1.2X110N20
I1.2X140N18
1.20
140
1.01
0.033
0.010
18.2
0.43
81.0
21.5
45.5
18
18
C
1/2'
I1.2X140N18
I1.2X170N
1.20
170
1.23
0.027
0.012
22.2
0.14
89.5
21.5
54.0
18/16
18/16
C
1/2'
I1.2X170N
I1.3X53N
1.30
53
0.62
0.050
0.007
13.0
0.18
56.5
14.5
28.0
16
18/16
C
1/2'
I1.3X53N
J1.4X52N16
1.40
52
0.68
0.042
0.008
16.7
0.23
59.5
26.0
28.5
16
16
C
1/2'
J1.4X52N16
I1.5X50N
1.50
50
0.49
0.054
0.006
13.9
0.10
63.0
14.5
34.5
16
18/16
C
1/2'
I1.5X50N
J1.5X65N16
1.50
65
0.53
0.050
0.007
15.0
0.28
55.5
6.5
44.0
16
16
C
1/2'
J1.5X65N16
I1.5X70NM
1.50
70
0.53
0.050
0.007
15.0
0.04
61.3
3.5
43.8
M15X0.5
18/16
C
1/2'
I1.5X70NM
I1.5X80N
1.50
80
0.53
0.050
0.007
15.0
0.04
56.5
14.5
28.0
16
18/16
C
1/2'
I1.5X80N
I1.5X80N
1.50
80
0.74
0.036
0.009
20.8
0.23
56.5
14.5
28.0
16
18/16
C
1/2'
I1.5X80N
I1.5X90N
1.50
90
0.60
0.044
0.008
16.9
0.10
123.5
21.5
88.0
18/16
18/16
C
2/3'
I1.5X90N
I1.5X100N20
1.50
100
0.44
0.060
0.006
12.5
0.20
139.1
37.1
88.0
20
18/16
C
2/3'
I1.5X100N20
J1.5X102N16
1.50
102
0.70
0.038
0.009
19.7
0.08
60.0
34.0
21.0
16
16
C
1/2'
J1.5X102N16
I1.5X108N
1.50
108
0.53
0.050
0.007
15.0
0.24
83.8
26.0
43.8
18/16
18/16
C
1/2'
I1.5X108N
I1.5X110N18
1.50
110
0.73
0.036
0.009
20.8
0.20
81.0
21.5
45.5
18
18
C
1/2'
I1.5X110N18
I1.5X110N
1.50
110
0.73
0.036
0.009
20.6
0.24
81.0
6.5
60.5
16
18/16
C
1/2'
I1.5X110N
I1.5X115NM18
1.50
115
0.70
0.038
0.009
19.7
0.23
88.1
3.5
70.6
M15X0.5
18
C
1/2'
I1.5X115NM18
I1.5X150N
1.50
150
0.74
0.036
0.009
20.8
0.12
89.5
21.5
54.0
18/16
18/16
C
1/2'
I1.5X150N
I1.5X150N
1.50
150
1.07
0.025
0.013
30.0
0.12
89.5
21.5
54.0
18/16
18/16
C
1/2'
I1.5X150N
I1.5X180N
1.50
180
0.86
0.031
0.011
24.2
0.15
89.5
21.5
54.0
18/16
18/16
C
1/2'
I1.5X180N
型號
倍數
工作距
景深
數值孔徑
分辨率
孔徑F#
畸變%
鏡身L0
L1
L2
d1
d2
接口
最大接收器
外形圖下載
I1.5X220N16
1.50
220
1.07
0.025
0.013
30.0
0.05
102.0
34.0
54.0
16
16
C
1/2'
I1.5X220N16
I1.5X50N
1.52
50
0.49
0.054
0.006
14.1
0.10
63.0
14.5
34.5
16
18/16
C
1/2'
I1.5X50N
I1.6X200N
1.60
200
0.93
0.027
0.012
29.6
0.05
105.3
21.5
69.8
18/16
18/16
C
1/2'
I1.6X200N
I1.7X65N
1.70
65
0.55
0.043
0.008
19.8
0.34
56.5
14.5
28.0
16
18/16
C
1/2'
I1.7X65N
I1.8X95N
1.80
95
0.53
0.042
0.008
21.4
0.80
89.5
21.5
54.0
18/16
18/16
C
1/2'
I1.8X95N
I1.8X46N
1.83
46
0.38
0.057
0.006
16.1
0.07
72.3
14.5
43.8
16
18/16
C
1/2'
I1.8X46N
I1.9X110N
1.90
110
0.45
0.047
0.007
20.2
0.30
96.0
21.5
60.5
18/16
18/16
C
2/3'
I1.9X110N
I2X40N18
2.00
40
0.05
0.085
0.004
11.8
0.20
81.0
21.5
45.5
18
18
C
1/2'
I2X40N18
J2X43N16
2.00
44
0.57
0.035
0.010
28.6
0.10
55.5
6.5
44.0
16
16
C
1/2'
J2X43N16
I2X45N18
2.00
45
0.37
0.054
0.006
18.5
0.01
81.0
21.5
45.5
18
18
C
1/2'
I2X45N18
J2X50NM22
2.00
50
0.37
0.054
0.006
18.5
1.18
68.5
4.0
59.5
M20X0.75
22
C
1/2'
J2X50NM22
I2X60NM
2.00
60
0.40
0.050
0.007
20.0
0.10
79.5
3.5
62.0
M15X0.5
18/16
C
1/2'
I2X60NM
I2X63N
2.00
63
0.33
0.060
0.006
16.7
0.30
63.0
14.5
34.5
16
18/16
C
1/2'
I2X63N
I2X64N
2.00
64
0.40
0.050
0.007
20.0
0.03
72.3
14.5
43.8
16
18/16
C
1/2'
I2X64N
I2X65N
2.00
65
0.38
0.053
0.006
18.9
0.00
56.5
14.5
28.0
16
18/16
C
1/2'
I2X65N
I2x68N
2.00
68
0.34
0.058
0.006
17.2
0.36
63.0
14.5
34.5
16
18/16
C
1/2'
I2x68N
I2X70NM
2.00
70
0.37
0.054
0.006
18.5
0.10
61.3
3.5
43.8
M15X0.5
18/16
C
1/2'
I2X70NM
I2X70N
2.00
70
0.38
0.053
0.006
18.9
0.00
56.5
14.5
28.0
16
18/16
C
1/2'
I2X70N
I2X77N18
2.00
77
0.50
0.040
0.008
25.0
0.25
72.3
34.0
24.3
16
18
C
1/2'
I2X77N18
I2X82N
2.00
82
0.43
0.047
0.007
21.3
0.08
63.0
14.5
34.5
16
18/16
C
1/2'
I2X82N
I2X110N
2.00
110
0.55
0.036
0.009
27.5
0.10
84.9
27.1
43.8
18/16
18/16
C
1/2'
I2X110N
I2X130N
2.00
131
0.67
0.030
0.011
33.3
0.10
90.5
14.5
62.0
16
18/16
C
1/2'
I2X130N
I2X150N18
2.00
150
0.75
0.027
0.013
37.5
0.08
102.1
6.5
81.6
16
18
C
1/2'
I2X150N18
I2X195N18
2.00
195
1.00
0.020
0.017
50.0
0.04
117.1
6.5
96.6
16
18
C
1/2'
I2X195N18
I2X350N20
2.00
350
0.80
0.025
0.015
40.0
0.10
168.3
36.6
117.7
20
18
C
2/3'
I2X350N20
I2.1X60N
2.10
60
0.32
0.060
0.006
17.5
0.30
63.0
14.5
34.5
16
18/16
C
1/2'
I2.1X60N
I2X260N20
2.10
260
0.68
0.028
0.012
37.5
0.53
156.5
36.6
105.9
20
18/16
C
1'
I2X260N20
I2.5X18N
2.50
18
0.16
0.100
0.003
12.5
0.41
52.0
3.5
34.5
M15X0.5
18/16
C
1/2'
I2.5X18N
I2.5X65NM
2.50
65
0.28
0.058
0.006
21.6
0.15
79.5
3.5
62.0
M15X0.5
18/16
C
1/2'
I2.5X65NM
J2.5X68N16
2.50
68
0.28
0.058
0.006
21.6
0.22
76.8
33.5
38.3
16
16
C
1/2'
J2.5X68N16
I2.5X70N18
2.50
70
0.31
0.052
0.006
24.0
0.07
81.0
21.5
45.5
18
18
C
1/2'
I2.5X70N18
I2.5X90N
2.50
90
0.27
0.059
0.006
21.2
0.20
105.3
21.5
69.8
18/16
18/16
C
1/2'
I2.5X90N
I2.5X110N
2.50
110
0.32
0.050
0.007
25.0
0.08
96.0
21.5
60.5
18/16
18/16
C
1/2'
I2.5X110N
I2.5X110N
2.50
110
0.44
0.036
0.009
34.4
0.08
96.0
21.5
60.5
18/16
18/16
C
1/2'
I2.5X110N
I2.5X150N18
2.50
150
0.43
0.037
0.009
33.8
0.05
112.6
21.5
77.1
18
18
C
2/3'
I2.5X150N18
型號
倍數
工作距
景深
數值孔徑
分辨率
孔徑F#
畸變%
鏡身L0
L1
L2
d1
d2
接口
最大接收器
外形圖下載
I2.7X30N13.5
2.70
30
0.23
0.064
0.005
21.1
0.32
50.0
36.0
0.0
14
14
C
1/2.5'
I2.7X30N13.5
I3X150N
2.80
150
0.39
0.037
0.009
37.8
0.04
123.5
21.5
88.0
18/16
18/16
C
2/3'
I3X150N
I3X25N13.5
3.00
25
0.14
0.093
0.004
16.1
0.37
45.9
31.9
0.0
14
14
C
1/2.5'
I3X25N13.5
I3X68N
3.00
68
0.23
0.059
0.006
25.5
0.10
72.3
14.5
43.8
16
18/16
C
1/2'
I3X68N
I3X68N
3.00
68
0.30
0.045
0.007
33.3
0.10
72.3
14.5
43.8
16
18/16
C
1/2'
I3X68N
I3X70NM
3.00
70
0.05
0.060
0.006
25.0
0.25
79.5
3.5
62.0
M15X0.5
18/16
C
1/2'
I3X70NM
I3X90N
3.00
90
0.30
0.044
0.008
34.1
0.04
96.0
21.5
60.5
18/16
18/16
C
1/2'
I3X90N
I3X110N
3.00
110
0.27
0.050
0.007
30.0
0.06
105.3
21.5
69.8
18/16
18/16
C
1/2'
I3X110N
I3X110N
3.00
110
0.37
0.036
0.009
41.3
0.06
105.3
21.5
69.8
18/16
18/16
C
1/2'
I3X110N
I3.5X50N
3.50
50
0.23
0.050
0.007
35.0
0.04
81.0
6.5
60.5
16
18/16
C
1/2'
I3.5X50N
I3.5X68N
3.50
68
0.20
0.058
0.006
30.2
0.10
81.0
6.5
60.5
16
16/18
C
2/3'
I3.5X68N
I4X60N
4.00
60
0.20
0.050
0.007
40.0
0.04
81.0
6.5
60.5
16
18/16
C
1/2'
I4X60N
I4X68N
4.00
68
0.17
0.059
0.006
34.0
0.10
90.5
14.5
62.0
16
18/16
C
1/2'
I4X68N
I4X70N
4.00
70
0.18
0.057
0.006
35.0
0.20
123.5
21.5
88.0
18/16
18/16
C
2/3'
I4X70N
I4X110N18
4.00
110
0.28
0.036
0.009
55.0
0.03
126.4
6.5
105.9
16
18
C
1/2'
I4X110N18
I4X135N18
4.00
135
0.31
0.032
0.010
62.5
0.03
141.4
21.5
105.9
18
18
C
1/2'
I4X135N18
I4X140N18
4.00
140
0.05
0.025
0.013
80.0
0.06
126.4
6.5
105.9
16
18
C
1/2'
I4X140N18
I4.5X75N
4.50
75
0.22
0.041
0.008
54.9
0.08
105.3
21.5
69.8
18/16
18/16
C
1/2'
I4.5X75N
I4.5X110N18
4.50
110
0.05
0.025
0.013
90.0
0.07
117.1
6.5
96.6
16
18
C
1/2'
I4.5X110N18
I5X40N18
5.00
40
0.09
0.090
0.004
27.8
0.26
81.0
21.5
45.5
18
18
C
2/3'
I5X40N18
I5X62N
5.00
62
0.12
0.064
0.005
38.9
0.17
96.0
21.5
60.5
18/16
18/16
C
1/2'
I5X62N
I5X82N
5.00
82
0.16
0.049
0.007
51.3
0.10
123.5
21.5
88.0
18/16
18/16
C
2/3'
I5X82N
I5X110N18
5.00
110
0.22
0.036
0.009
68.8
0.05
126.4
6.5
105.9
16
18
C
1/2'
I5X110N18
I5.5X56N
5.50
56
0.10
0.070
0.005
39.3
0.06
123.5
21.5
88.0
18/16
18/16
C
1/2'
I5.5X56N
I6X68N
6.00
68
0.11
0.060
0.006
50.0
0.10
123.5
21.5
88.0
18/16
18/16
C
1/2'
I6X68N
型號
倍數
工作距
景深
數值孔徑
分辨率
孔徑F#
畸變%
鏡身L0
L1
L2
d1
d2
接口
最大接收器
外形圖下載
您的瀏覽器不支持嵌入式框架,或者當前配置為不顯示嵌入式框架。
